Add Renault Symbol 2010 Remote Keys via Lonsdor K518ISE

This is a quick demonstration of how to add remote keys for Renault Symbol 2010 with Lonsdor K518ISE Key Programmer.

Connect Lonsdor K518ISE with Renault OBD2 port:

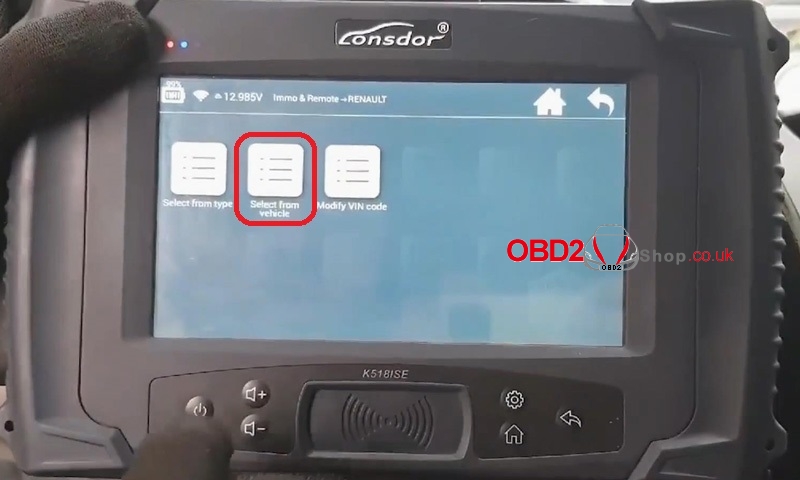

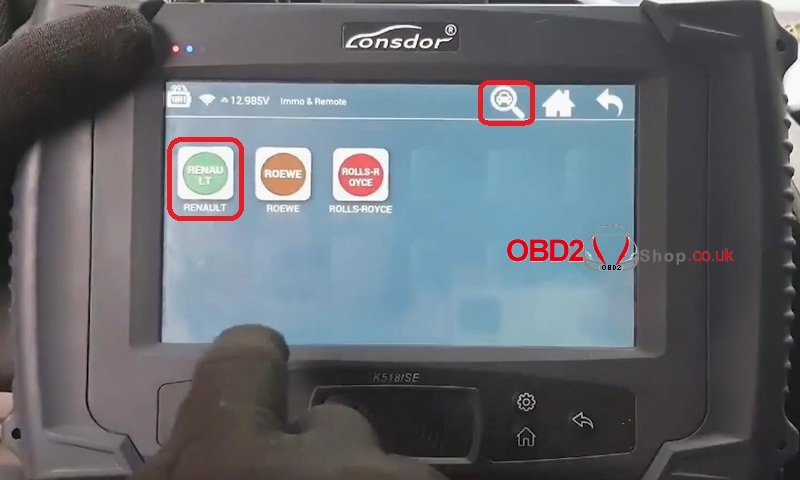

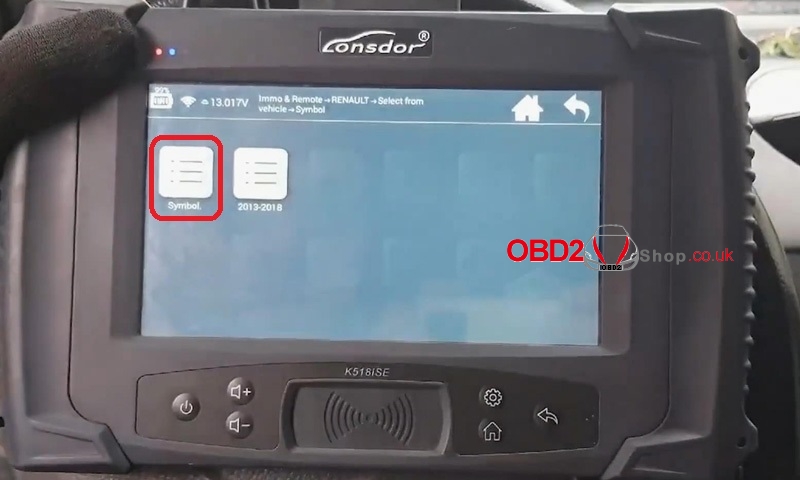

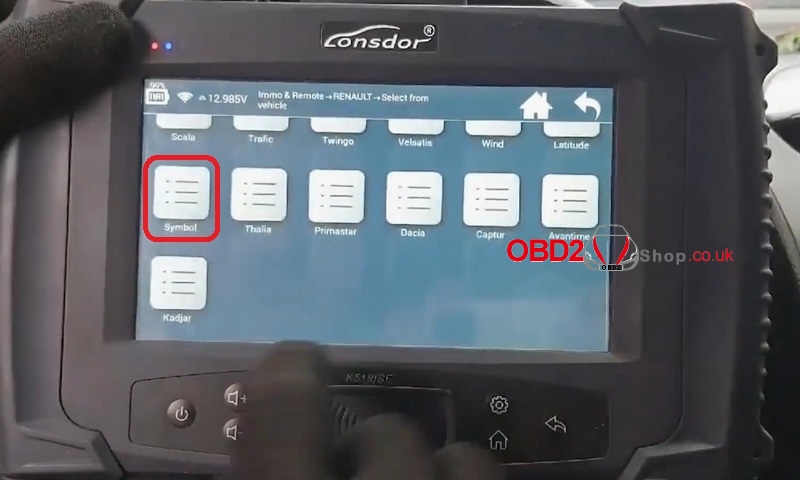

Search Renault >> Renault >> Select from vehicle >> Symbol

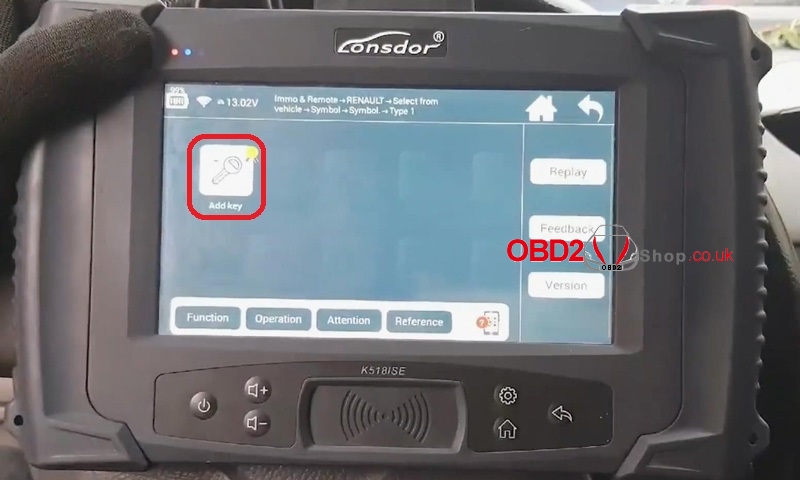

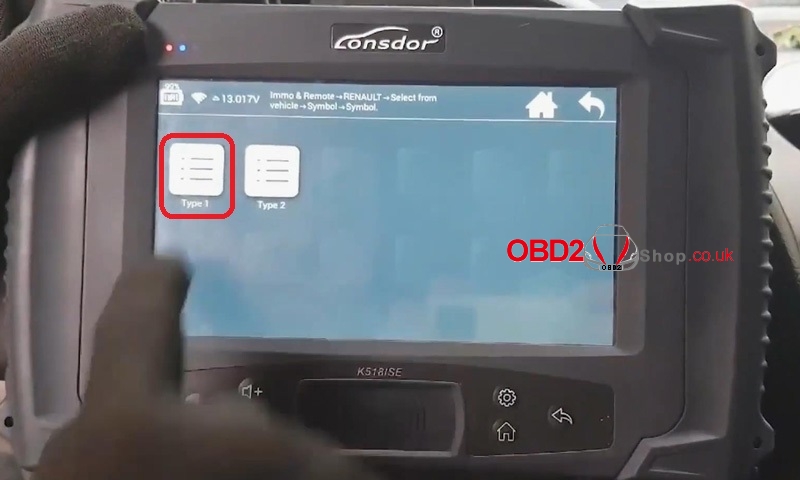

Symbol >> Type 1 >> Add key

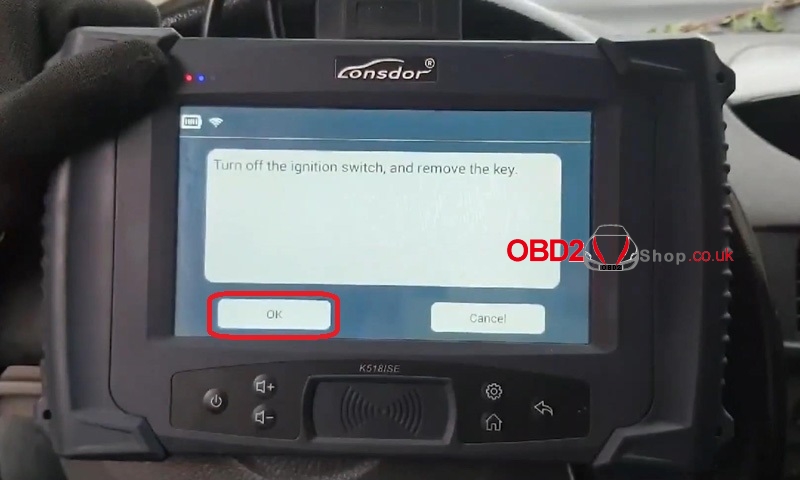

Turn off the ignition switch, and remove the key, press “OK”.

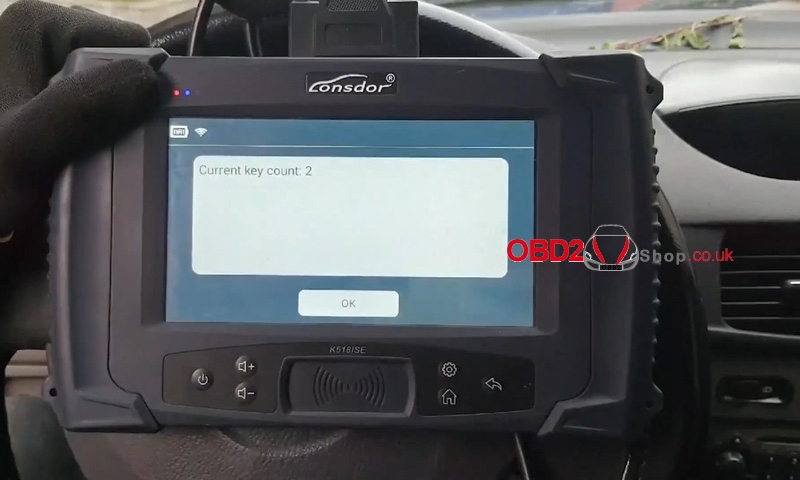

Current key count:2, press “OK”.

Confirm vehicle information, press “OK”.

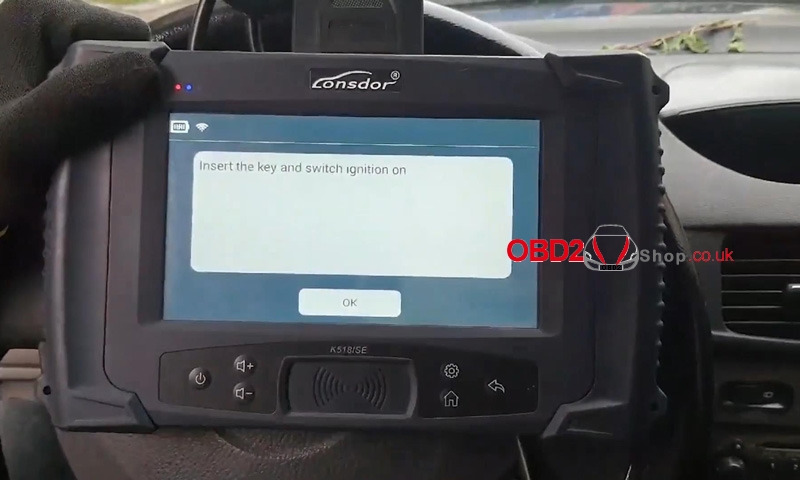

Insert the key and switch ignition on, press “OK”.

Configuring system, please wait…

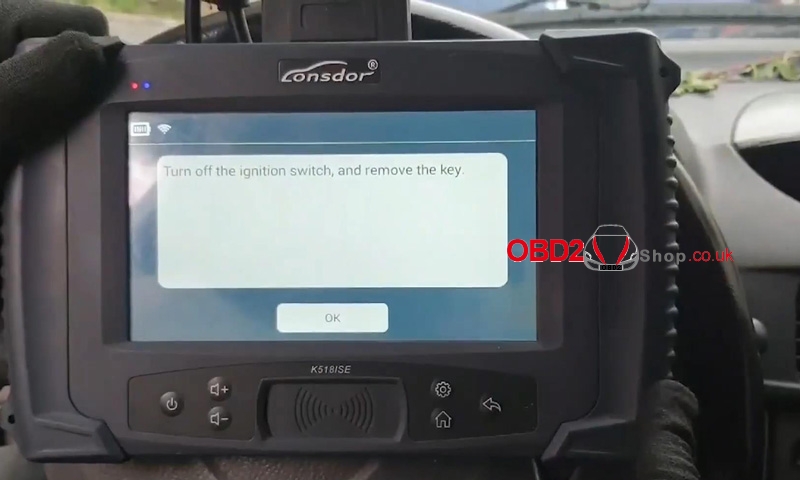

Turn off the ignition switch, and remove the key, press “OK”.

Program successful, do you want to program next one? Press “OK” to go on.

This is a quick demonstration of how to add remote keys for Renault Symbol 2010 with Lonsdor K518ISE Key Programmer.  Connect Lonsdor K518ISE with Renault OBD2 port:  Search Renault >> Renault >> Select from vehicle >> Symbol 图片1-3  Symbol >> Type 1 >> Add key 图片4-6  Turn off the ignition switch, and remove the key, press “OK”.  Current key count:2, press “OK”.  Confirm vehicle information, press “OK”. 图片7-8  Insert the key and switch ignition on, press “OK”.  Configuring system, please wait...  Turn off the ignition switch, and remove the key, press “OK”.  Program successful, do you want to program next one? Press “OK” to go on. 图片9-11  Repeat same operations as before: Insert the key and switch ignition on, press”OK”. Turn off the ignition switch, and remove the key. Press “OK”. Program successful, press “Cancel” to finish programming.  Current key count:2, press “OK”. Programming complete, press “OK”. 图片12-13  So let’s test the 2 keys, both can start the engine normally, and their remotes are workable. Remote keys programming has done! 图片14-15  This is using Lonsdor K518ISE to program 2 keys for a Renault Symbol 2010 successfully. https://www.obd2shop.co.uk/

Repeat same operations as before:
Insert the key and switch ignition on, press”OK”.
Turn off the ignition switch, and remove the key. Press “OK”.
Program successful, press “Cancel” to finish programming.

Current key count:2, press “OK”.
Programming complete, press “OK”.
renault-symbol-2010-add-remote-keys-via-lonsdor-k518ise-(12)

renault-symbol-2010-add-remote-keys-via-lonsdor-k518ise-(13)

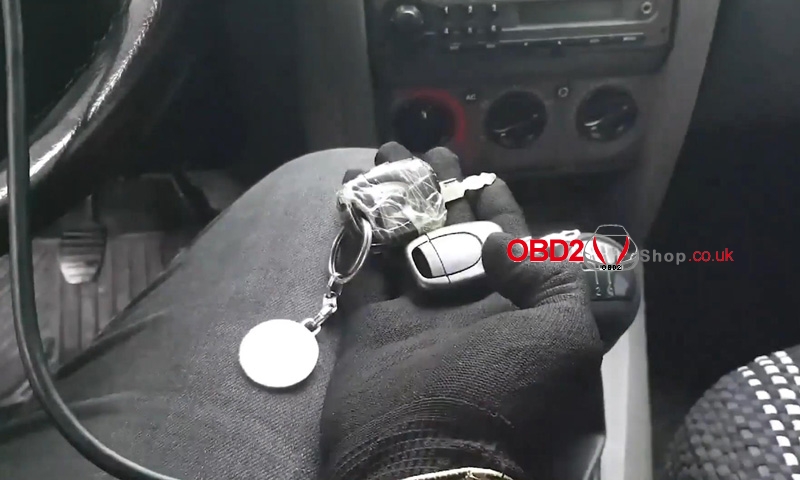

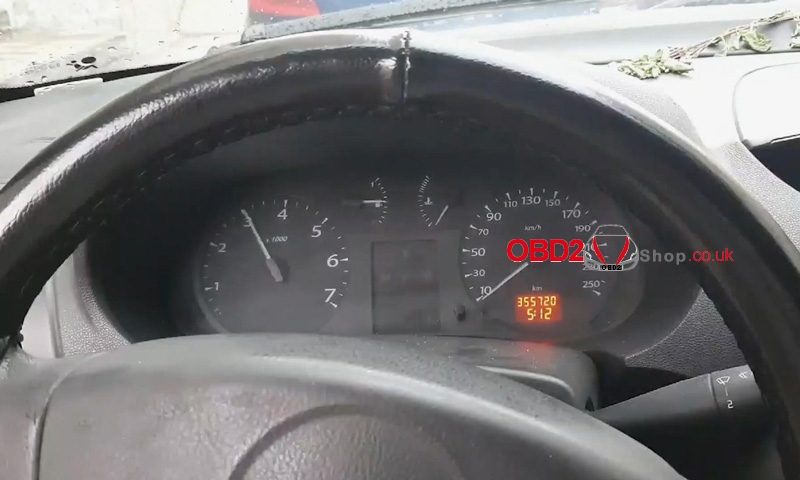

So let’s test the 2 keys, both can start the engine normally, and their remotes are workable.
Remote keys programming has done!

This is using Lonsdor K518ISE to program 2 keys for a Renault Symbol 2010 successfully.
