How to install New Genius/ K-Touch to read write ECU

Obd2shop.co.uk on Jan,2016 released a new tool New Genius K-TOUCH Map, which is the update version of KESS V2, the genius k-touch map allows reading / programming the ECU in modern vehicles over OBD2.

Today we’d like to share with you

How to install New Genius to read and write ECU.

New Genius O/S requirement: Windows XP/ 7

Multi-Language Support: English,Italian,German,French,Spanish,Portuguese,Hungarian

Video guide for installation:

Genius k-touch map Installation on XP

Genius k-touch map installation on WIN7

Genius Read write K Touch data Install video

Here is the detail step-by-step instruction on automatically install new genius on Windows xp:

Preparation

Disconnect network connection when installing and using K-touch.

Go to K-TOUCH disk (F:).

Open K-TOUCH-E->read first.pdf

Click Accept for the license agreement.

Minimize the pdf interface.

Step 1 Install K-TOUCH V1.0

Open K-Touch.

Click Next.

Click Install.

Installing K-Touch…

Select setup language. OK.

Setup requirements

geniuns-install-1

Installing requirements…

Click OK to restart the computer.

Step 2 Install K-Touch and Race EVO

Open New Genius K-Touch.

Click Next.

Click Install.

Installing K-Touch…

Select setup language. OK.

Setup requirements

geniuns-install-2



Installing requirements…

Race EVO (rev. 431 build 829) Setup 1 – Install Aware Wizard: click Next.

geniuns-install-3

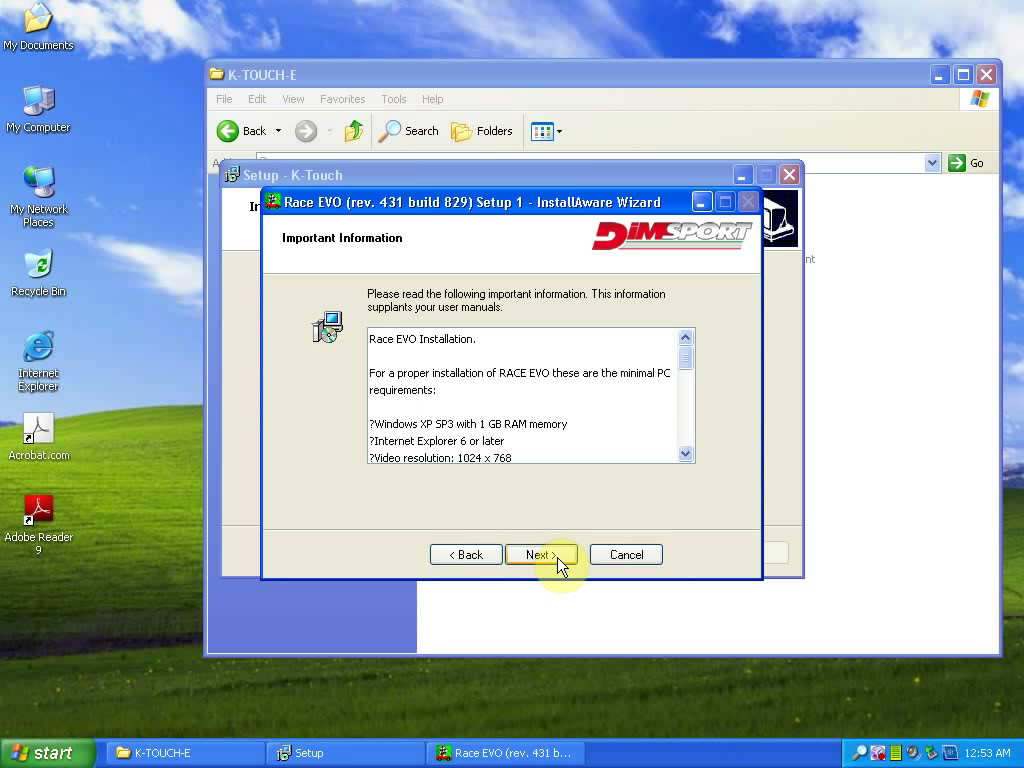

Important info for Race EVO installation: click Next.

(Windows XP SP3 with 1GB RAM memory)

geniuns-install-4

Go to read first.pdf, to copy Dimensione Sport Customer Code: C7535 to Race EVO. Then click Next.

Click Next.

Click Next to install.

Cancel the tick on Run Race EVO (rev. 431 build 829) Setup 1 now. And click Finish for installing Race EVO.

geniuns-install-5

Click Finish for installing K-Touch.

Tips on K-Touch read out data using computer

1 connect k-touch machine with power adapter, and then wait until the machine boot. If the machine cannot boot, turn off power then connect to power again, until the machine boot.

2 use USB cable to connect the machine to the computer, then read out K-Touch data.

Found new hardware wizard: click Next.

Click Finish for installing the software for DimSport – New Genius Device.

Go to Computer Management.

Select Device Manager->Universal Serial Bus controllers->DimSport – New Genius Device.

geniuns-install-6

Then close computer management.

Step 3 Run K-Touch

Open K-Touch on Desktop.

Click Accept definitely.

Please update database…. Click No.

Select K-Touch->Explore…

Race EVO: GENIUS is not updated…. Click OK.

Select FILE/Read/000. Then save on Desktop.

geniuns-install-7

Click Yes to extract header.

Back to FILE to select Write. Import on Genius.

geniuns-install-8

Open file “000” (not notepad 000) on desktop.

Back to FILE.

select Help (on top menu bar)->System information.
Read and click OK.

Select Help (on top menu bar)->Information About.
This is K-touch standard version 7.06.506 build 3029.

geniuns-install-9

Finished

That’s all the instruction about the genius k-touch map installation on XP system shared by Obd2shop.co.uk, if you also have the Genius, you can also following the above instructions

Hope it would help you.
