When working on VW Golf 8 smart keys, proper disassembly is important to avoid damaging the key shell or internal components. In this guide, we’ll show you how to use the YANHUA Vtool 5C/5D Key Cutting Kits to safely disassemble a VW Golf 8 5D key housing step by step.
Step 1: Remove the Mechanical Key

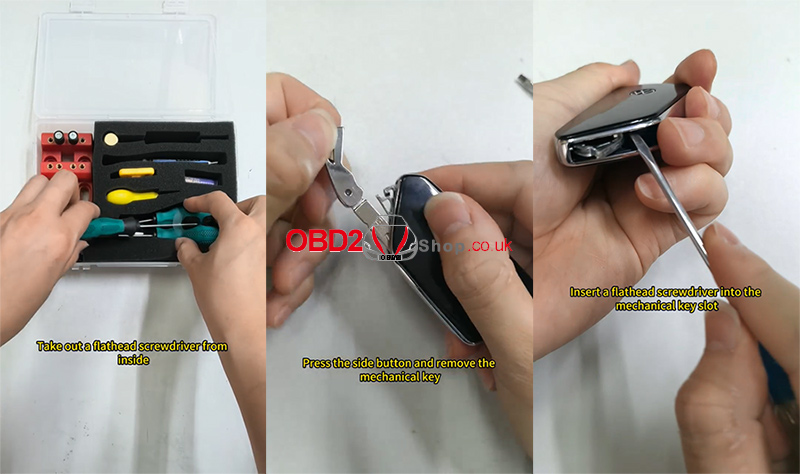

First, take out the flathead screwdriver stored inside the kit.
Press the side button on the key.
Remove the mechanical key.
Insert the flathead screwdriver into the mechanical key slot.

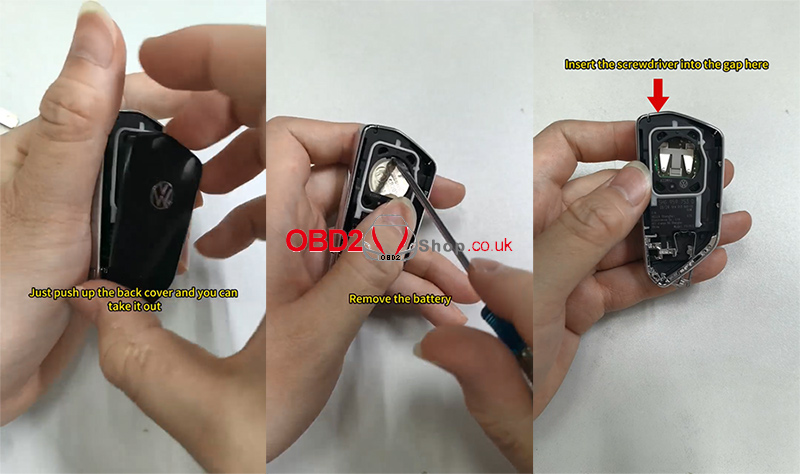

Push upward gently to remove the back cover.
Remove the battery.
Step 2: Release the Locking Clips
Insert the screwdriver into the gap near the locking clip.

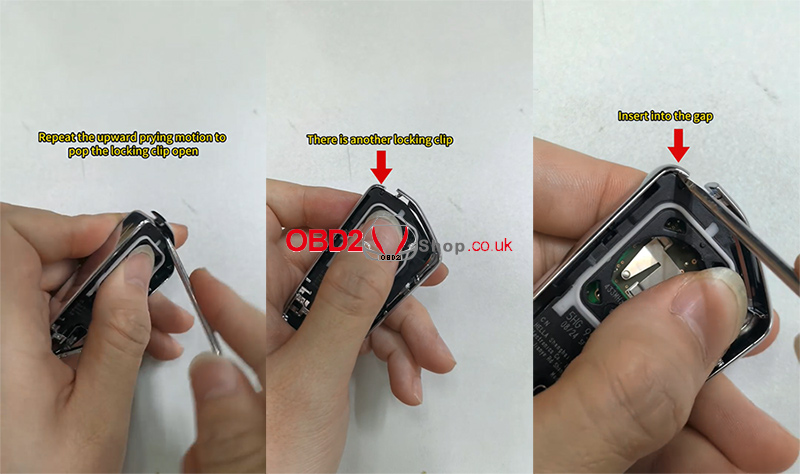

Pry upward carefully to pop the locking clip open.
Locate the second locking clip.

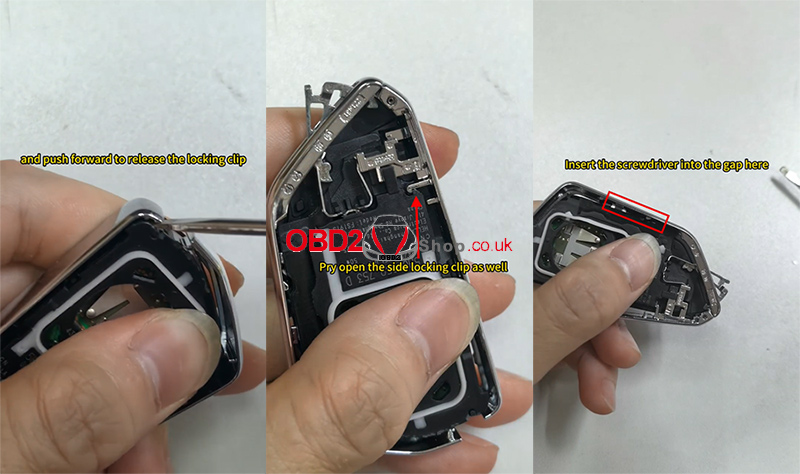

Insert the screwdriver into the gap and push forward to release it.
Pry open the side locking clip as well.

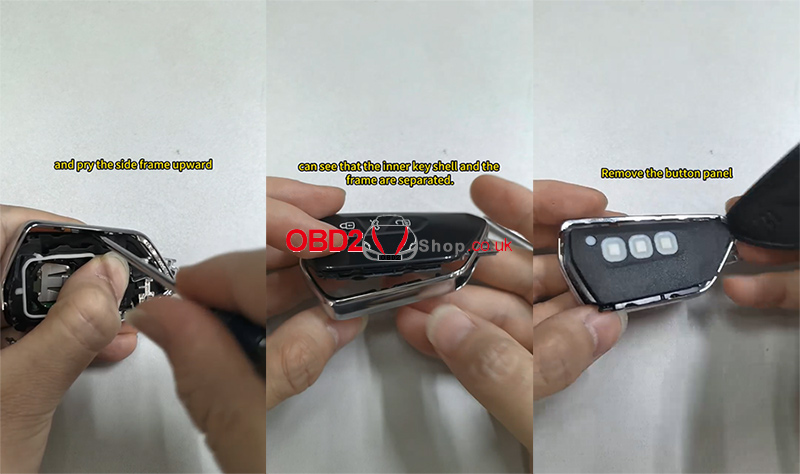

Insert the screwdriver into the side gap and lift the side frame upward.
At this point, you will see the inner key shell separated from the outer frame.
Remove the button panel.
Step 3: Separate the Key Shell

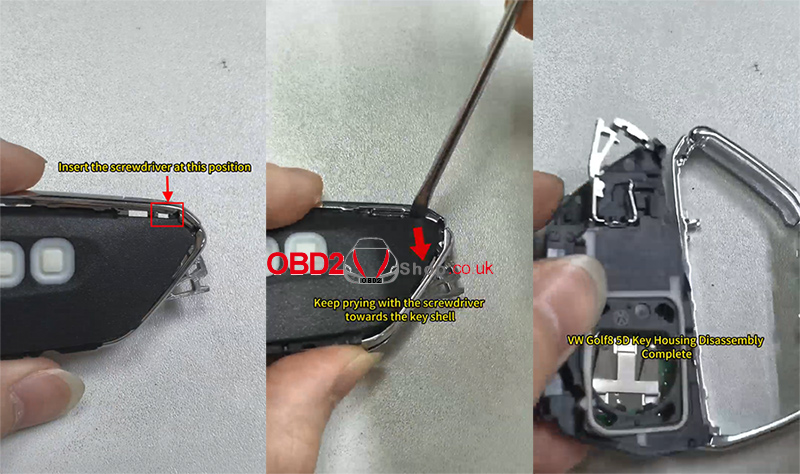

Insert the screwdriver into the indicated position.
Continue prying toward the key shell carefully.
Repeat the motion several times until the shell is completely released from the latch pin.
The VW Golf 8 5D key housing disassembly is now complete.
Video Guide
For a detailed visual demonstration, watch the video below:
Conclusion
Using the YANHUA Vtool 5C/5D Key Cutting Kits makes VW Golf 8 5D key shell disassembly easier and safer. By following the correct prying sequence and carefully releasing the locking clips, you can avoid damaging the key housing and complete the job efficiently.
