In this guide, we will show you how to use the Yanhua Vtool 5C/5D Key Cutting Kits to safely disassemble a VW 5C folding key step by step.
The process is simple if you use the correct tools and follow the proper sequence.
Required Tools

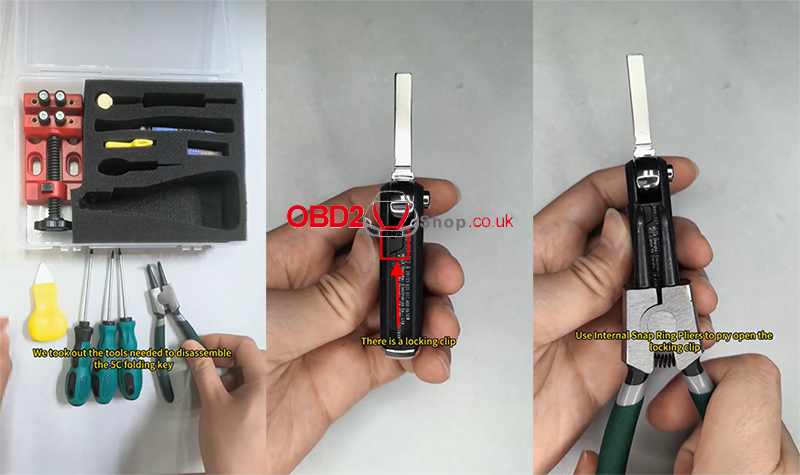

Prepare the following tools from the Yanhua Vtool kit:
Internal snap ring pliers
Flathead screwdriver
T6 Torx screwdriver
Step 1: Open the Mechanical Key
First, flip out the mechanical key blade.
You will find a locking clip inside the key shell. Use the internal snap ring pliers to carefully pry open the locking clip.

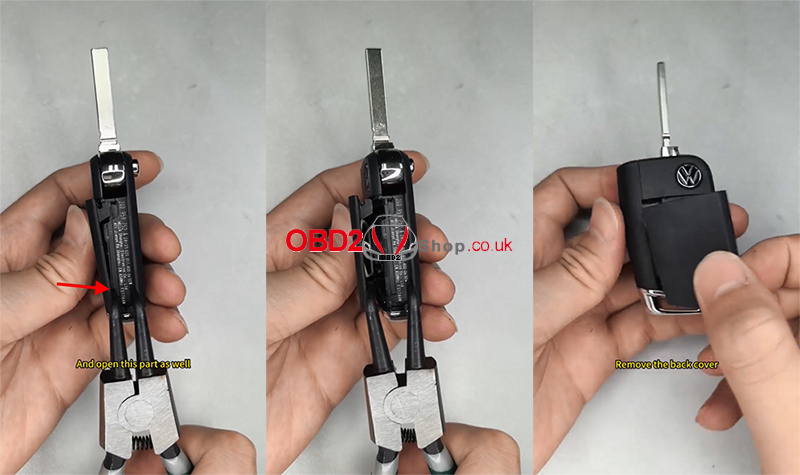

Then open the surrounding section and remove the back cover.
Step 2: Remove the Battery and Screw

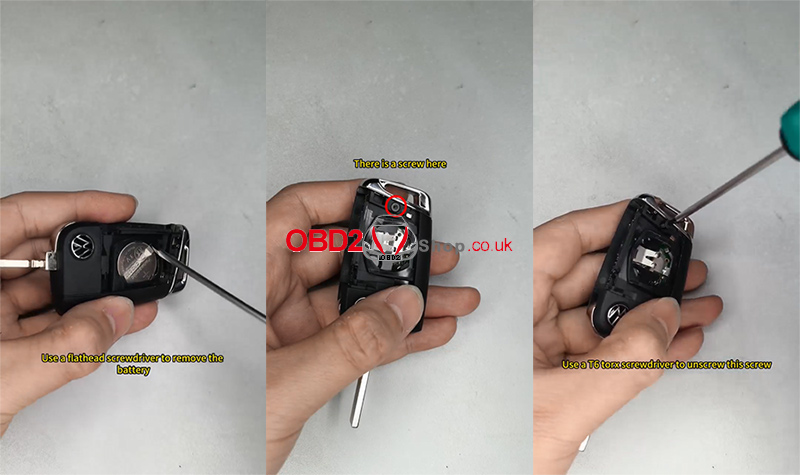

Use a flathead screwdriver to remove the battery.
Next, locate the internal screw and remove it with a T6 Torx screwdriver.

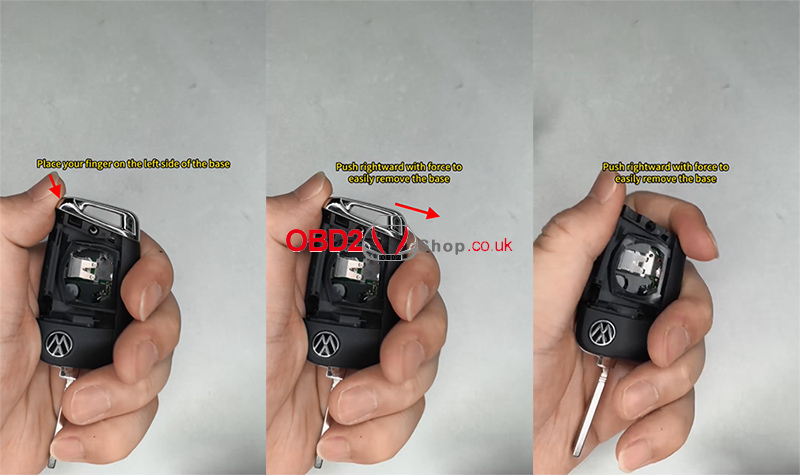

Place your finger on the left side of the key base and push firmly to the right to separate the base easily.
Step 3: Open the Side Cover

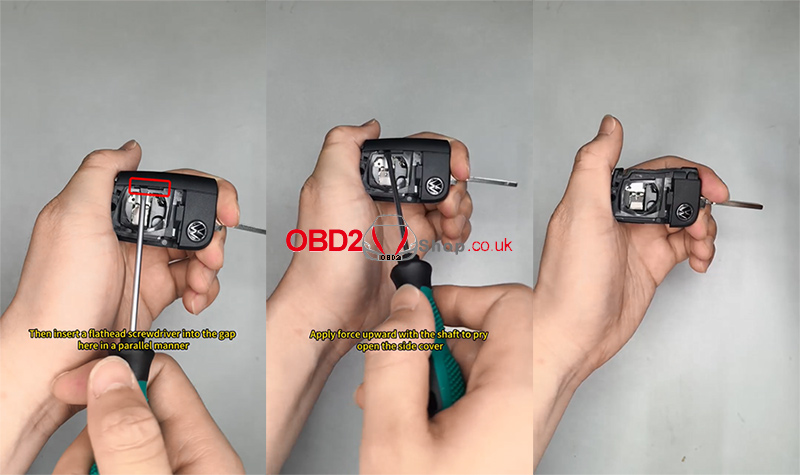

Insert a flathead screwdriver into the side gap at a 90 ° angle.
Carefully apply upward force with the screwdriver shaft to pry open the side cover.

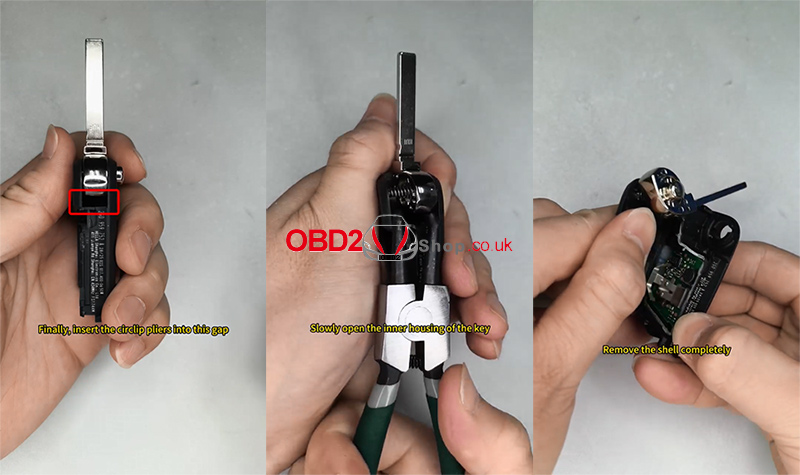

After that, insert the circlip pliers into the gap and slowly separate the key’s inner housing.
Remove the shell completely.
Step 4: Remove the Keyboard

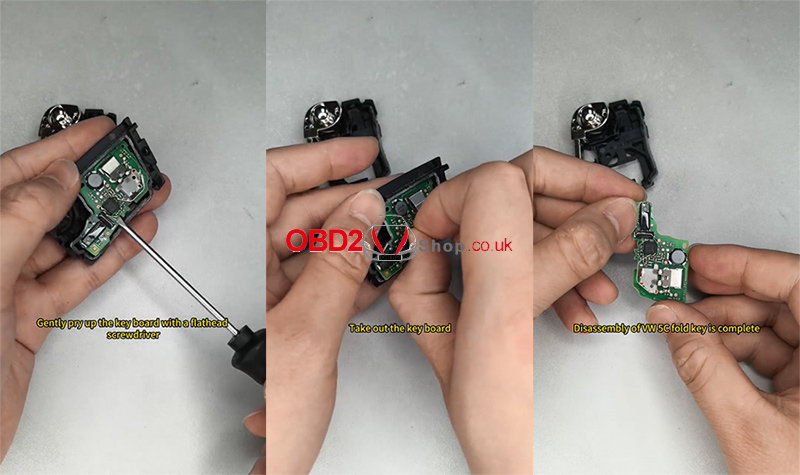

Use a flathead screwdriver to gently lift the keyboard section.
Carefully remove the keyboard from the housing.
The VW 5C folding key disassembly is now complete.
Video Guide
Watch the complete operation video here:
