Here collect the frequently-asked-questions on Yanhua ACDP BMW FEM BDC using tips.

Q1: What should I do first when I meet a FEM/BDC vehicle?
A: Firstly, to identify FEM/BDC via OBD. Operating as following:

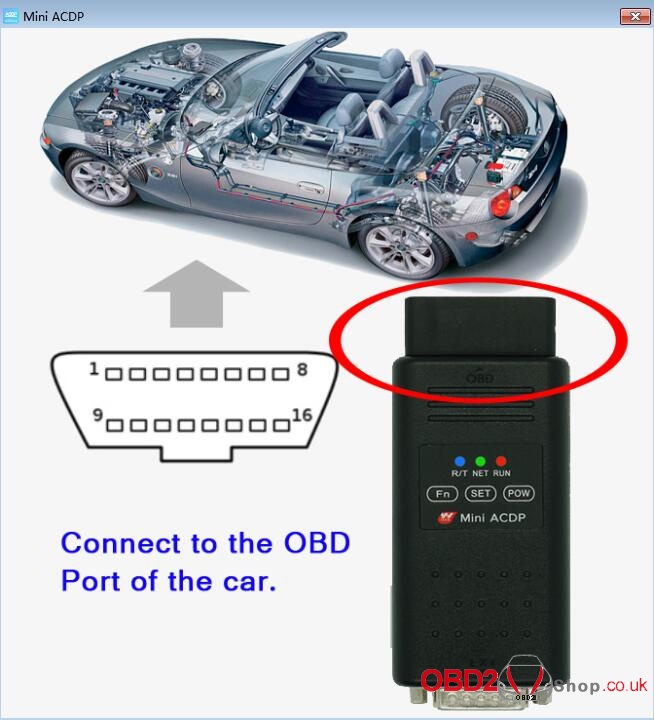

Connect the ACDP to the vehicle OBD port, and connect the device. Then open the APP to click the “BMW ”
programming—“FEM/BDC”— “OBD detect FEM/BDC”.
obd-detect-bmw-fem

obd-detect-bmw-fem-02

When it occurs:
Whether the FEM/BDC supports preprocess operations: support
Whether the FEM/BDC has been processed: unprocessed
Please disassemble the FEM/BDC module from vehicle, and connect the FEM/BDC with ACDP device on the desktop platform , and operate following the “Help document”.

When it occurs:
Whether the FEM/BDC supports preprocess operations: support
Whether the FEM/BDC has been processed: processed
It indicates that the FEM/BDC module has been initial programming processed before, so no need to do initial programming process. Now you can do key programming or mileage resetting.

When it occurs:
Whether the FEM/BDC supports preprocess operations: unsupported
Whether the FEM/BDC has been processed: unprocessed
It indicates that ACDP does not support programming of this FEM/BDC version. It requires BMW engineer software to read version information, downgrade or upgrade to ACDP-supported versions, and then connect FEM/BDC with ACDP devices on the desktop platform for operation.

Q2: How to determine the module is FEM or BDC ?
A: To judge by the memory chip model. 95128 or 95256.
95128 is FEM
95256 is BDC
95128-fem

95256-bdc

Q3: The 4 fixed pins of FEM/BDC bridge are not inserted into the PCB hole?fem-bdc-03  fem-bdc-skills-04

A: The 4 fixed pins of FEM/BDC bridge are oriented in the direction of the bridge and have no actual electrical performance. The functions are not affected by this. Only the RES of FEM/BDC has electrical performance.
RES position of BDC
res-position-of-bdc-05

RES position of FEM
res-position-of-fem-06
