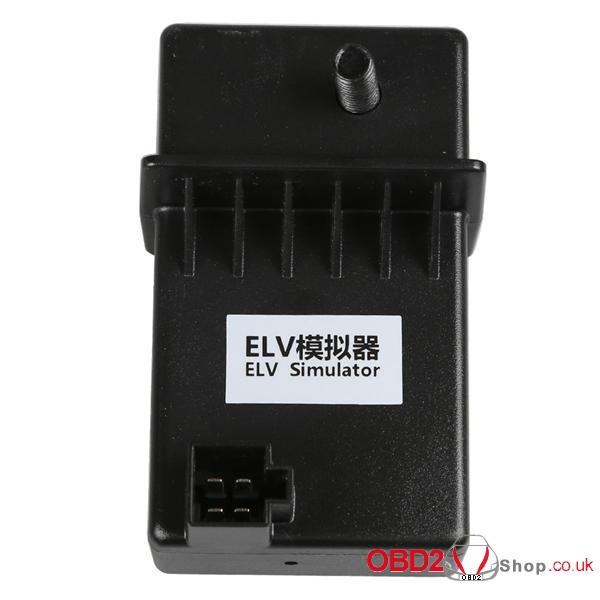

XHORSE ELV Emulator for Benz 204 207 212 with VVDI MB tool

This post is about XHORSE ELV Emulator for Benz 204 207 212 with VVDI MB tool

How to tell if the ESL is damaged or NEC is locked?

Open VVDI MB Tool software, Click “Check ESL damage” and you will get any of following display:
ESL is working: means the motor is damaged and you need a new full set of ESL motor.

ESL is damaged: need to replace new ESL.

How to replace ESL with VVDI MB BGA Tool?

Step1.
Erase EIS, then re-write EIS and personalize ESL, finally ESL is synchronized. Note: if you not erase ESL at first, but only personalize ESL, the ESL won’t be synchronized.

To erase EIS, both Key password and Erase password are required.
For the key password, you can get it by adding keys.
After input the two passwords, click “Save EIS data” then “Erase EIS”
Now the EIS is full new

Step2.
Load EIS data
Tick “IR” to write EIS data and “OBD” to write VIN.

Step3. Click “Personalize W204 ESL”

Step4.
Now, the options “Initialized”, “TP Cleared” and “Personalized” are ticked, except “Activated”
Insert the original car key then EIS and ESL is in “Activated” status.
Finally renew ESL with success.

Please Kindly Note:
It’s hard to buy Mercedes 204/207 EIS and they are expensive. If you have 204/ 207 all key lost, you are advised to use W212 EIS for replacement and the ESL needs to be removed.
