How to use SD Connect C4 Change Speed Limit ( VMAX) On MB Amg

With use the Star Diagnostic XENTRY how to change speed limit (top speed) on MB SL230 ? Here is the detail instruction steps help you :

Please Kindly Notice:
The guide below is also applied to R230, W220, W219, W211, etc.

Equipment we need :

MB SD CONNECT COMPACT 4 ( Or MB Star C3 Pro)

Procedure of changing Speed Limit (Vmax):
Connect the diagnostic mux SDconnect C4 to MB and laptop.
Open Xentry.

Select SL230.

sd-c4-do-benz-Speed-limiter-1

Select 230.474 – SL 55 AMG KOMPRESSOR.

sd-c4-do-benz-Speed-limiter-2

Click on Xentry Diagnostics button.

sd-c4-do-benz-Speed-limiter-3

Click F2 to continue.

sd-c4-do-benz-Speed-limiter-4

Data are being determined, please wait…
Click F2 to continue.

sd-c4-do-benz-Speed-limiter-5

Data are being determined, please wait…
Please wait. DAS is initializing communication…
Coding checks CGW…

sd-c4-do-benz-Speed-limiter-6

Vehicle data are being read…
Data are being determined, please wait…
Select Drive.

sd-c4-do-benz-Speed-limiter-7

Select ME-SFI 2.8 – Motor electronic 2.8.

sd-c4-do-benz-Speed-limiter-8

sd-c4-do-benz-Speed-limiter-9

Select Fault codes.

sd-c4-do-benz-Speed-limiter-10

No fault code present.

sd-c4-do-benz-Speed-limiter-11

Click Backwards button.
Select Event memory.
No event present.
Click Backwards button.
Select Development data.

sd-c4-do-benz-Speed-limiter-12

Select Control unit adaptations.

sd-c4-do-benz-Speed-limiter-13

Select Control unit adaptations (Variant coding).

sd-c4-do-benz-Speed-limiter-14

Select Implizite Kodierung ME281 AMG C6-Stand.

sd-c4-do-benz-Speed-limiter-15

Page down.

sd-c4-do-benz-Speed-limiter-16

0224: select Fahrzeug – Code, Vmax=250 km/h.

sd-c4-do-benz-Speed-limiter-17

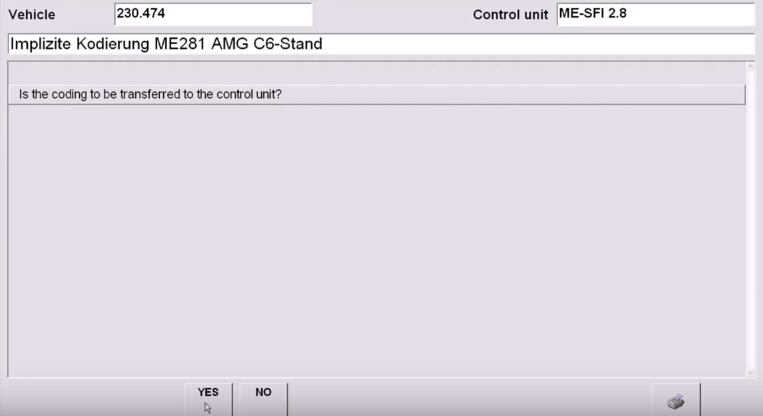

Is the coding to be transferred to the control unit? Click YES.

sd-c4-do-benz-Speed-limiter-18

The coding has been carried out.

sd-c4-do-benz-Speed-limiter-19

Also you can change your selection.
Back to select Implizite Kodierung ME281 AMG C6-Stand.
0224: select Fahrzeug – Code, Vmax=300 km/h.

sd-c4-do-benz-Speed-limiter-20

Back to end DAS to exit.

sd-c4-do-benz-Speed-limiter-21

Done

That’s all for the Steps,hope it would help you 🙂
