CG100 PROG III repair Airbag for Honda ECU 77960-T9A-F411-M2 R5F2154

Step-by-step procedure on how to use CG100 PROG III to repair airbag for Honda ECU
77960-T9A-F411-M2 R5F2154.

Model: Honda
No.: 77960-T9A-F411-M2
Chip: R5F2154

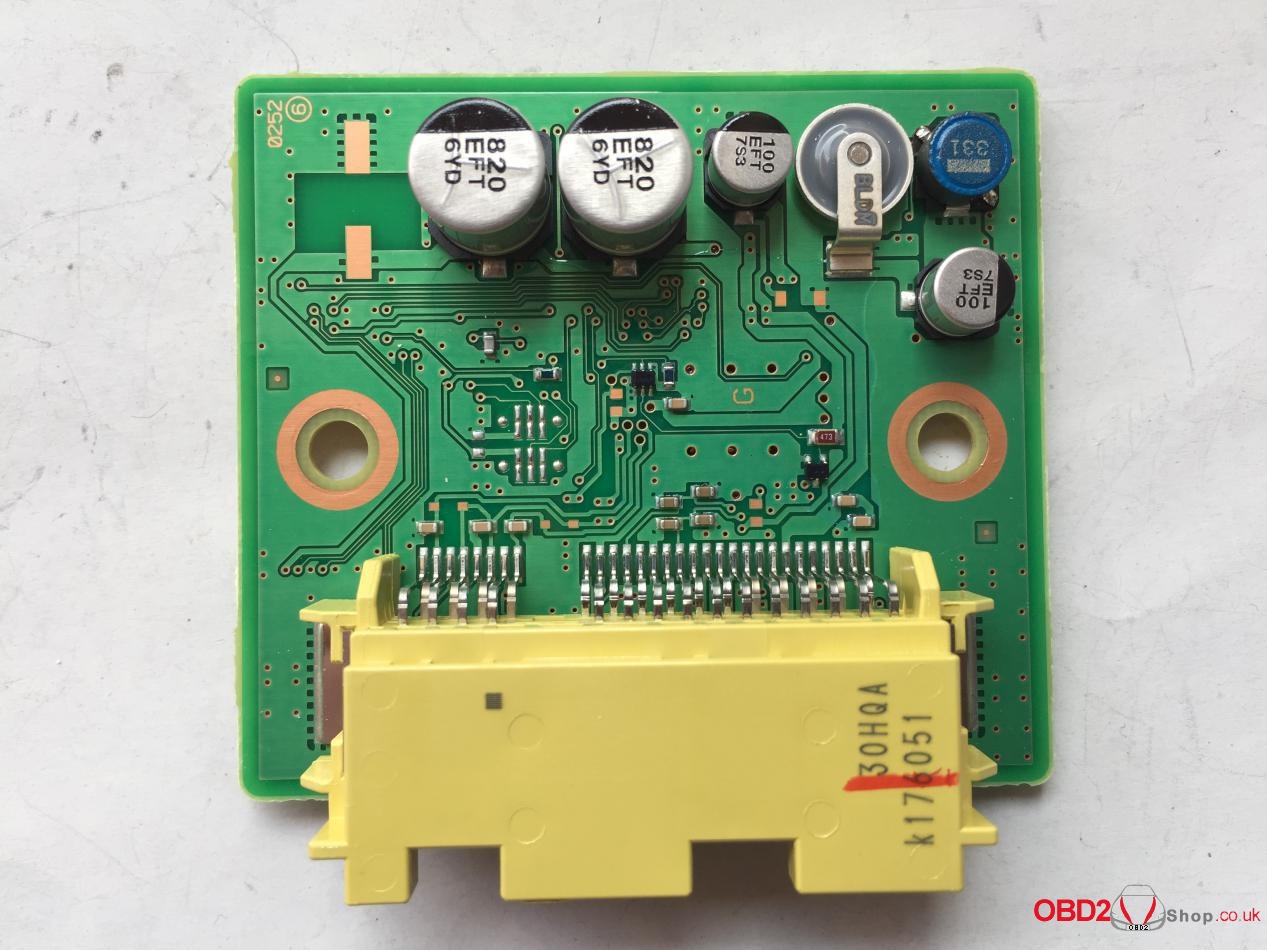

1. Power off the vehicle, remove the airbag computer, check the style and the chip.
cg100-prog-iii-repair-airbag-for-honda-01 cg100-prog-iii-repair-airbag-for-honda-02 cg100-prog-iii-repair-airbag-for-honda-03

2. Open the CG100 special software, enter the corresponding operation
interface, and wire according to the wiring diagram.
cg100-prog-iii-repair-airbag-for-honda-04 cg100-prog-iii-repair-airbag-for-honda-05 cg100-prog-iii-repair-airbag-for-honda-06

3.After confirming that the wiring is correct, the device is powered on, operate it step by step according to the software prompts.
cg100-prog-iii-repair-airbag-for-honda-07

Note: Please do not touch any cables when it is reading.
cg100-prog-iii-repair-airbag-for-honda-08 cg100-prog-iii-repair-airbag-for-honda-09

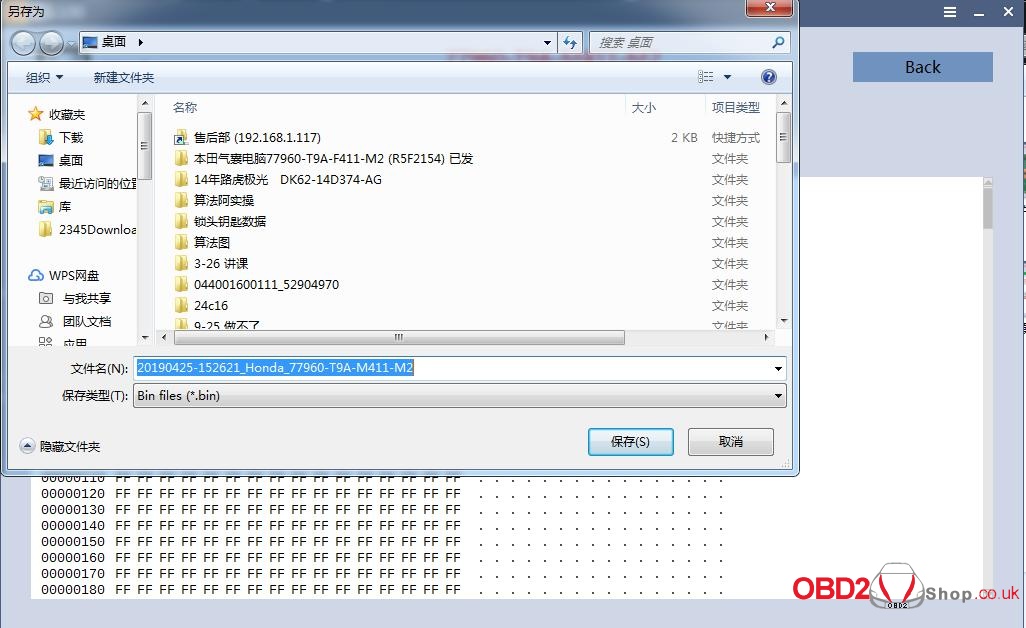

Save file successfully.
cg100-prog-iii-repair-airbag-for-honda-10 cg100-prog-iii-repair-airbag-for-honda-11

Note: Please do not touch any cables when it is repairing.
cg100-prog-iii-repair-airbag-for-honda-13

4. It will show “ Repair successfully”, please put the airbag computer back on car and
test it if it is ok.—Done

Thanks.

Please enjoy.
