To write the VIN on a Buick Delphi MT60 ECM using the OBDSTAR DC706 ECU tool, follow these structured steps:

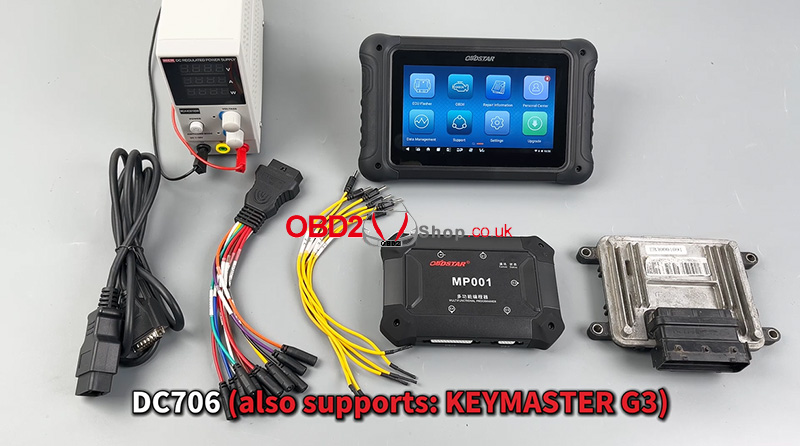

Required Tools:
OBDSTAR DC706 (or X300 Classic G3)
High-power DC regulated power supply
Main cable
ECU clone jumper
MP001 programmer
Delphi MT60 ECM
Preparation:
Ensure the software is updated to the latest version before starting.
Steps to Write VIN:
1. Access ECU Flasher
Tap [ECU Flasher] > [ECM] > [ECM V31.70].
Use the search function in the upper-right corner to locate the module quickly.
2. Review Guide & Connection Methods
Tap [Guide] and carefully read the operation instructions.
Review the procedures for both the BOOT and BENCH modes.
3. Select and Verify Connection Mode
Open [Pinout], select [BENCH], and confirm the module’s appearance matches your ECU.
Open [Connector Pinout] and follow the connection diagram.
4. Establish Connection
Connect the module accordingly.
Tap [Start] to begin.
Note: If cloning the ECU, use the BOOT mode instead.
5. Backup Original Data
After a successful connection, back up the original ECU data.
Customize the file name as needed.
6. Write the VIN
Tap [Write VIN].
Enter the new VIN.
Confirm the update. Writing completed!
Conclusion:
By following these steps, you can efficiently modify the VIN on the Delphi MT60 ECM using OBDSTAR DC706. Always ensure data backup before making changes.
