OBDSTAR DP Plus programs 2016 Toyota 88/A8 smart keys all lost with simulated card

obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-03

OBDSTAR DP Plus is tested 100% ok to program 2016 Toyota smart keys all lost with P001 programmer and the simulated card (88/A8 type in Red).

Tools to prepare:
OBDSTAR DP Plus full package (with P001 programmer and the simulated card )

Procedure:
Read EEPROM
Make simulated card
Add Smart key
Erase smart key

Connect OBDSTAR DP Plus to the Toyota OBD port (Directly charge via the vehicle)

Press the “Start” button and you can see the yellow warning light flashes for 3 times (Means detecting no keys).obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-01 obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-02

Enter into DP Plus function menu, tap “Toyota / Scion / Lexus”
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-03

Initializing MCU data
Loading
VCI is upgrading.. (VCI is built-in)
Initializing
Loading
Initializing diagnostic data
Authorizing…
* 5 seconds done… DP plus is running fast

Tap “Smart key system”
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-04

Tap “Type 5 (All smart keys lost)”
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-05

Tap “Read eeprom”.
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-06

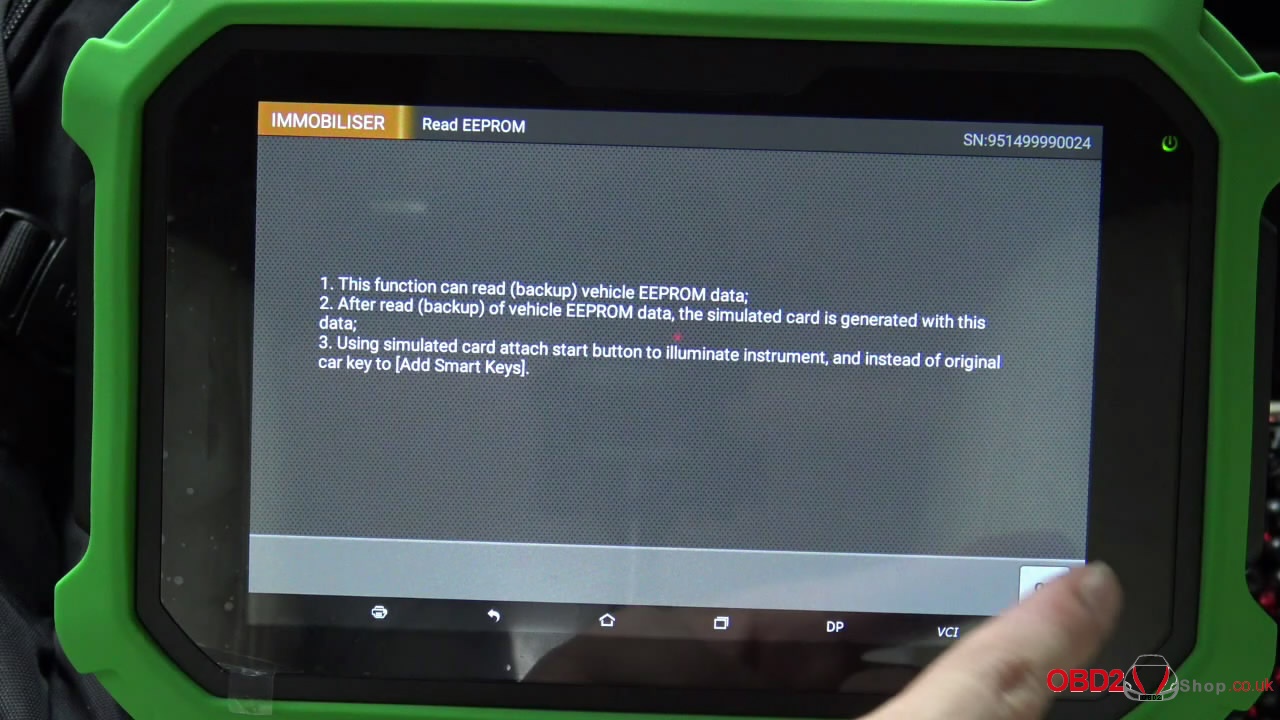

Read in on-screen guide :
1. This function can read (backup) vehicle EEPROM data;
2. After read (backup) of vehicle eeprom data, the simulated card is generated with this data;
3. Using simulated card attach start button to illuminate instrument, and instead of original car key to [Add smart keys].
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-07

Communicating…
Reading data…

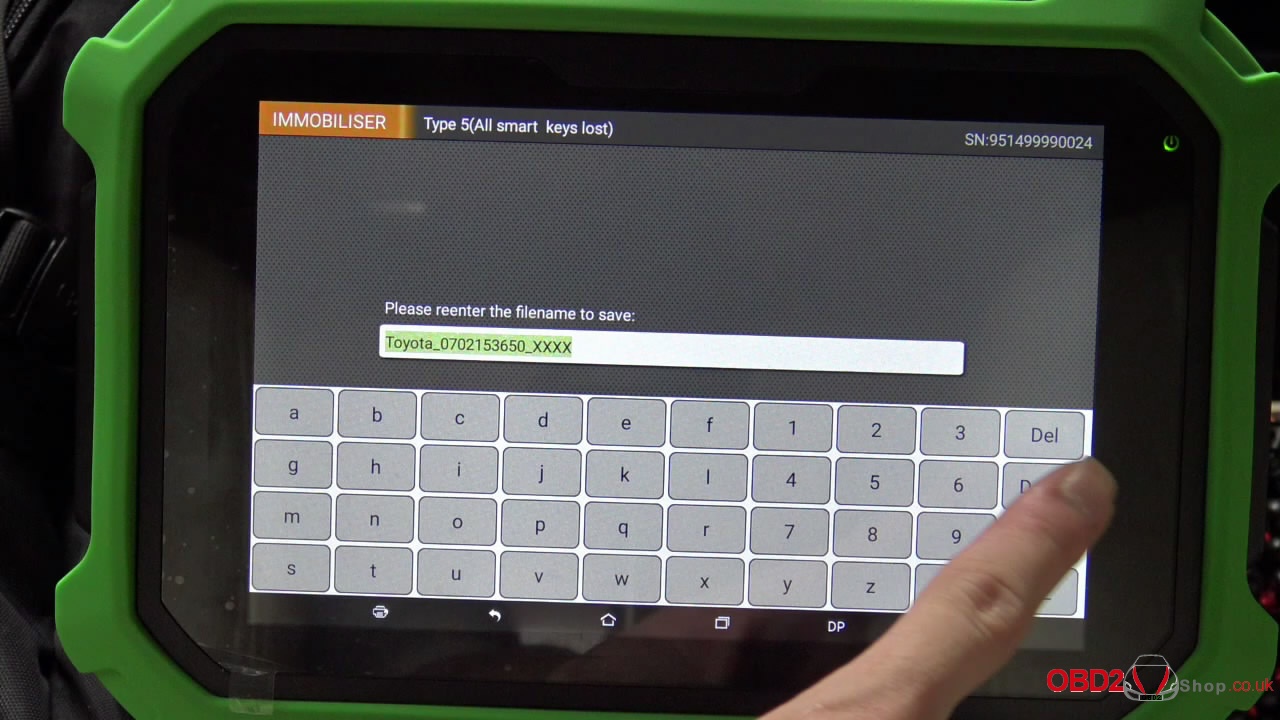

Please reenter the file name to save.
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-08 obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-09

This vehicle EEPROM data backup was successful. Please execute the [Make Simulated Card] function!
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-10

Tap “Make Simulated Card”.
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-11

This function can generate an simulated card with all keys lost.
Use this simulated card instead of the original car key to approach the start button and turn on the instrument, and perform the [Add Smart key] operation.
Make sure the simulated card is fully charged, otherwise the [Add Smart key] operation may fail.
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-12 obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-13

This function is available by connecting the server, please ensure the internet connection is normal.
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-14

Connecting to the server.
Connect P001 programmer to diagnostic tool.
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-15obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-16

Put NO.3 simulated card (Red) into P001 programmer.
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-17

Insert the battery and turn on the switch.
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-18 obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-19

Put the simulated card (88/A8 type in Red) into P001 programmer.
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-20

Only one seconds later, get message:
Generating simulated card successfully.
Move the simulated card close to the start button and try to light the meter. If you can light up the meter normally, use the simulated card instead of the original car key for the [Add smart key] operation.
obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-21 obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-22 obdstar-dp-plus-programs-2016-toyota-smart-keys-all-lost-23

Go on [Add smart key] operation.

Done
