OBD program Volvo S80 2012 Semi-Smart Key all lost with OBDSTAR key master

obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-01

Volvo S80 2012 Semi-Smart Key all keys lost, I firstly choose OBDSTAR Key Master to program new keys because it is easy to do via OBD.

Guide:
Plug obdstar Key Master Mux to the VCI box , then the VOLVO S80 via OBD cable.

obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-01

Select “Volvo”.

Volvo version V30.03.

obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-02

Select “S80”.

obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-03

Select “Year 2009 -2016”.

obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-04

Select ” Module identification”.
obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-05

Press start button once
obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-06

CEM is installed and KVM is installed.
obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-07

Select “Without keyless proximity”, then “All keys lost”, press start button once.
obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-08

Operate by following the notes on the screen and select “Yes”.
Note:
1. Performing the function requires minimum one semi smart key!
2. After programming successfully, the original car key will not be used again and need to be reprogrammed.
3. Please confirm the key type.
Continue?
obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-09

Switch ignition off.
obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-10

Communicating…
obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-11

Number of programmed key:1
Number of maximum programmed keys: 6
Select “OK” to ensure the above info.
obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-12

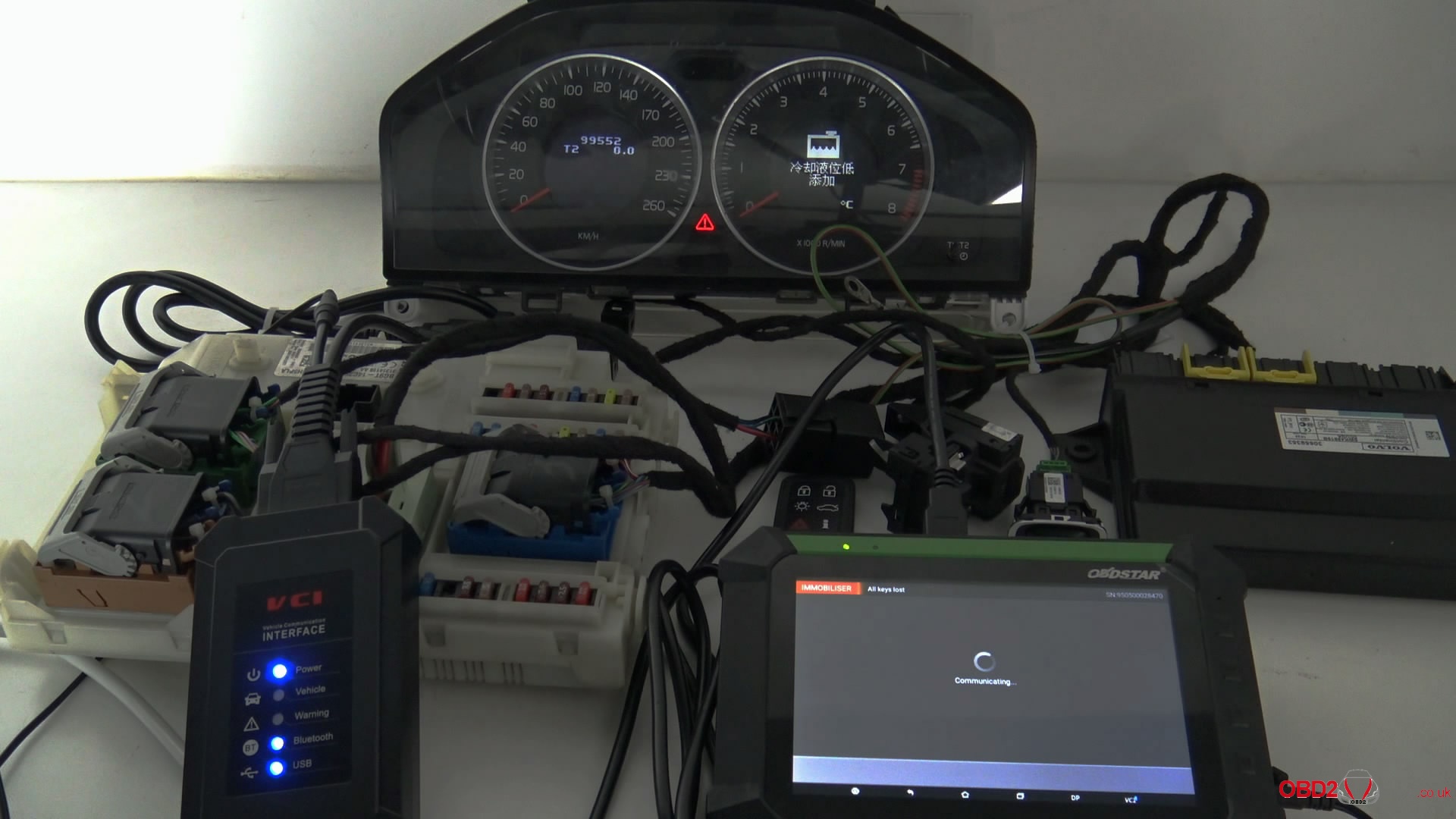

Communicating.
obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-13

Please insert the key to be programmed into the card slot, then select “Yes”.
obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-14

Please confirm if the key is inserted into the slot, select “Yes”.
obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-15

Communicating
Program success!!!
obdstar-key-master-on-volvo-s80-semi-smart-key-2012-all-keys-lost-16

Done!

It’s easy to use OBDSTAR Key Master to program VOLVO S80 Semi-Smart Key all keys lost via OBD.
