How to Use Magic Wand, Quickly & X100 key programmer 2015 Ford Focus add new keys

Good and exciting news ! New key programming success!! here, obd2shop.co.uk engineer managed to program a new key of 2015 Ford Focus with Magic Wand transponder, Quickly & OBDSTAR X100 key programmer.

Model Tested:

2015 Ford Focus

Equipment used:

The original key and new key

Quickly code reader

Magic Wand

OBDSTAR X100 Key Programming

Detail steps:

Step 1- Test the original transponder key by Quickly transponder

ad-new-key-ford-magic-wand-quicky-x100-1

Put the original key into the slot in Quickly

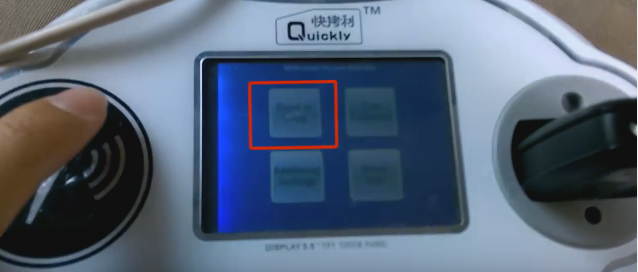

Select Read or copy

ad-new-key-ford-magic-wand-quicky-x100-2

Wait and don’t remove the key

ad-new-key-ford-magic-wand-quicky-x100-3

The chip is 83

ad-new-key-ford-magic-wand-quicky-x100-4

Take the key and try to use it start the car

It’s working

ad-new-key-ford-magic-wand-quicky-x100-5

Then take out the key

Step 2- Test the new transponder key

ad-new-key-ford-magic-wand-quicky-x100-6

(the sane as how to test the original one above)

The chip is 4D 70

ad-new-key-ford-magic-wand-quicky-x100-7

Try to start the car by the new key

It doesn’t work

ad-new-key-ford-magic-wand-quicky-x100-8

Step 3- Format 4D 70 to 83 by MAGIC WAND transponder

Put the new key into the key reading & writing slot

ad-new-key-ford-magic-wand-quicky-x100-9

Press “8” “3” and “write” buttons, and green indicator displays

ad-new-key-ford-magic-wand-quicky-x100-10

Take the key away



Step 4- Program the new key via OBDSTAR X100 key programmer

(x300 is connected and starts in preparation)

select Ford-> Focus-> year: 2014-

ad-new-key-ford-magic-wand-quicky-x100-11

Select “programming a new key”

ad-new-key-ford-magic-wand-quicky-x100-12

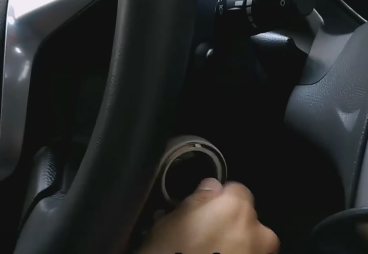

Insert a new transponder key and switch ignition on

Magic Wand close to ignition

ad-new-key-ford-magic-wand-quicky-x100-13

X300 is reading pin code…

Switch ignition off

Switch ignition on

We own 3 keys to start this car

Programming…

Key information

ad-new-key-ford-magic-wand-quicky-x100-14

It will take 4 minutes to program…

Get the pin code

ad-new-key-ford-magic-wand-quicky-x100-15

Now, we own 4 key to start this car

Try to start the car by the new key

It’s working

ad-new-key-ford-magic-wand-quicky-x100-16

Now Ford Focus 2015 new key programming success!!



Hope it can help you !
