The 2M2 Tank CNC Key Cutting Machine makes it easy to cut residential keys accurately by bittings. In this guide, we’ll show you how to cut a Yale key by bittings.
Step 1: Select the Yale Key Profile

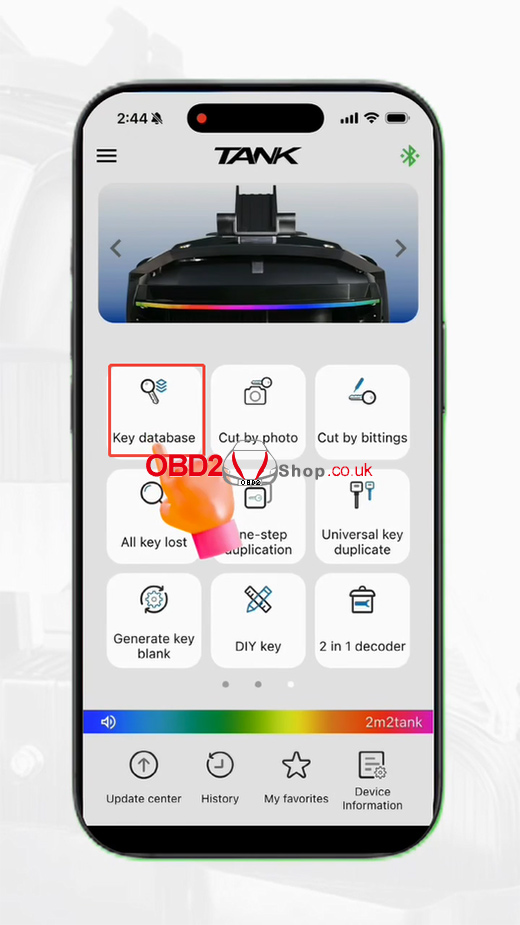

Turn on the 2M2 Tank CNC Key Cutting Machine and enter the key database.

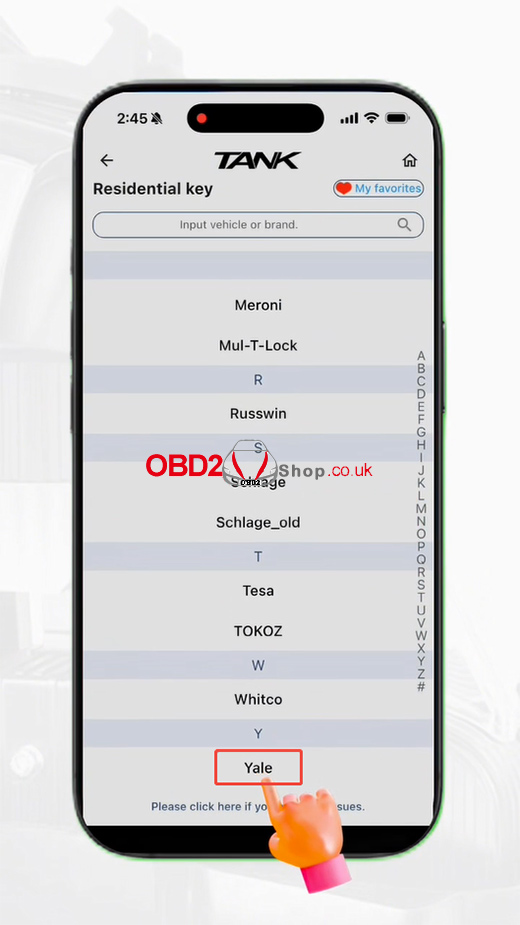

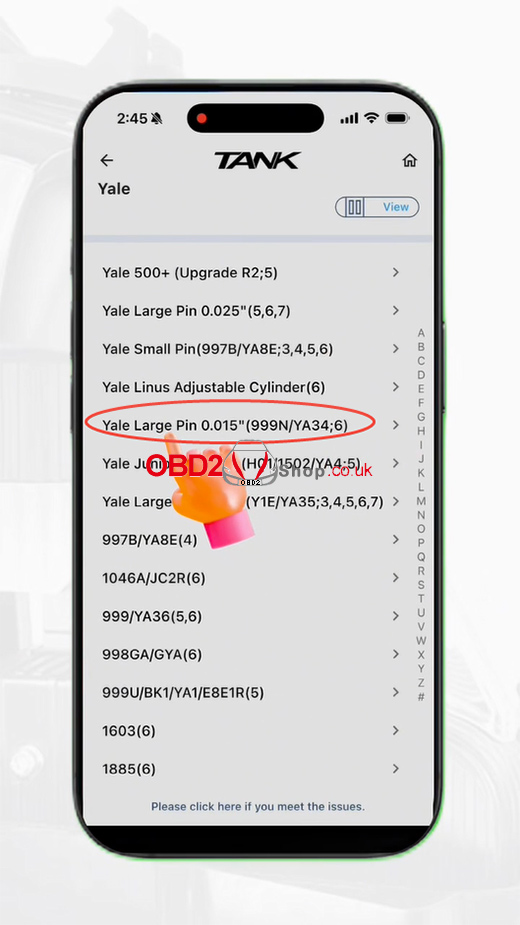

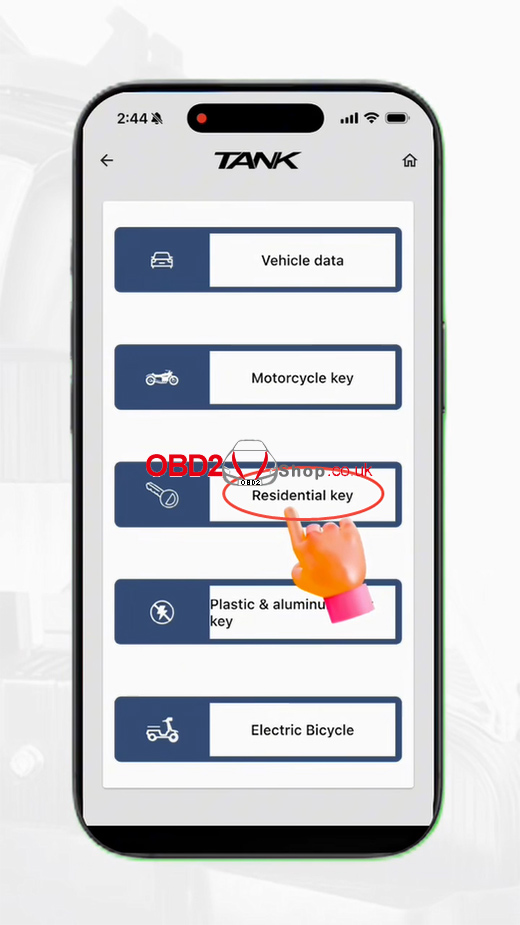

Go to: Key Database → Residential Key → Yale → Yale Large Pin 0.015″ (999N/YA34;6)
Select the corresponding key profile.

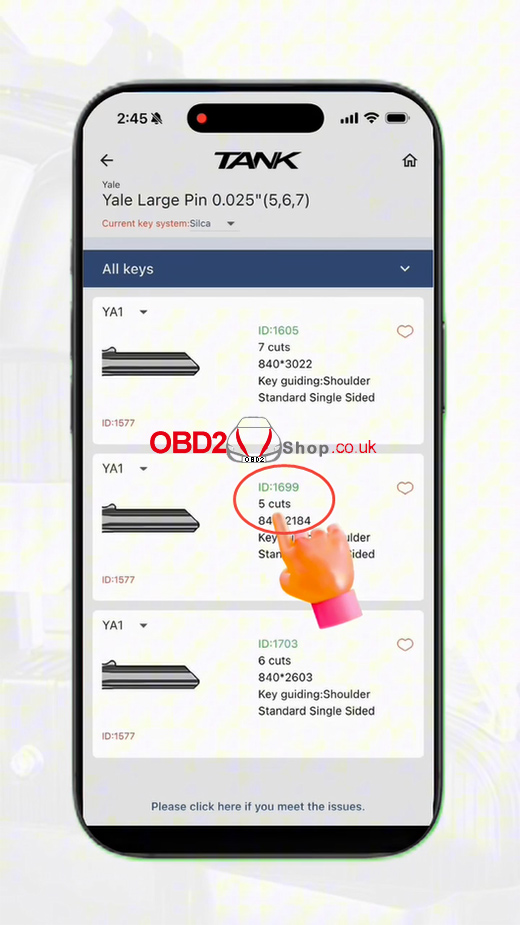

Step 2: Select the Number of Cuts
This Yale key has 5 cuts, so select the 5-cut option.

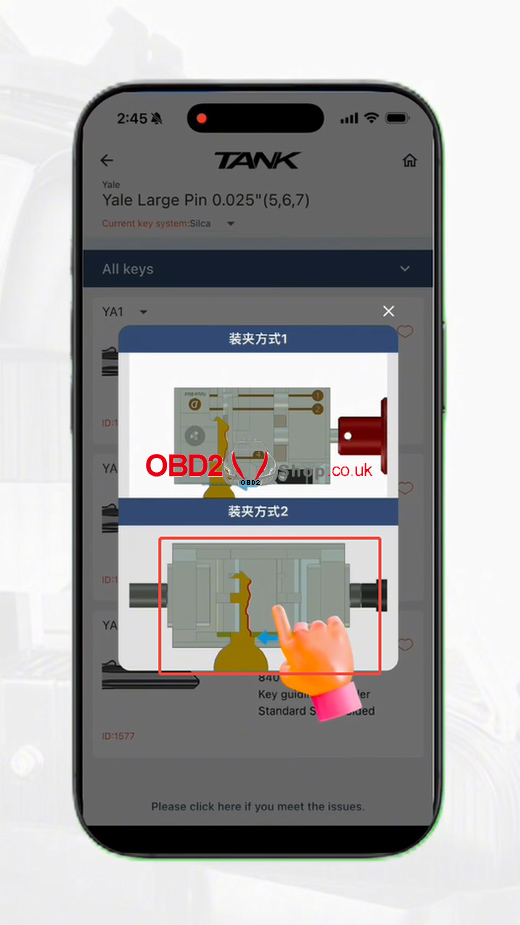

Then choose the Special Residential Clamp for key installation.
Step 3: Install the Key Blank

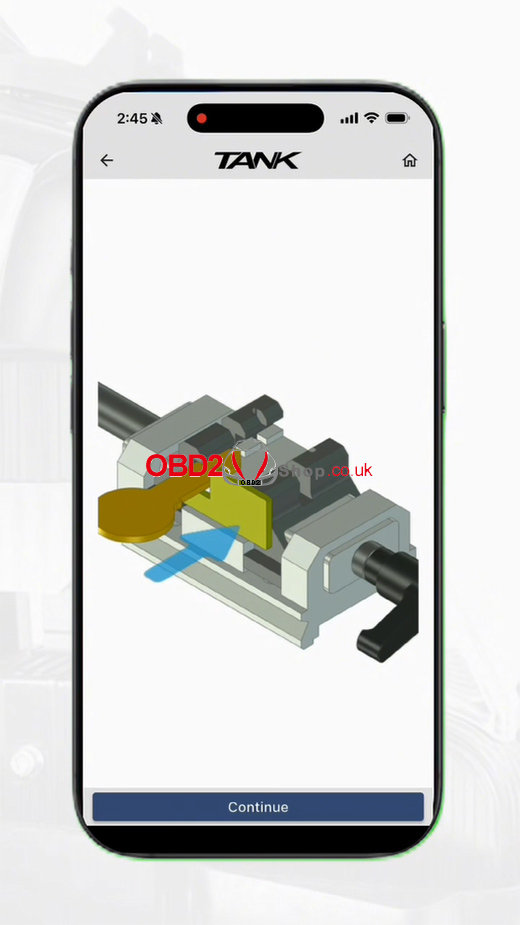

Follow the on-screen key installation guidelines and install the key blank correctly in the clamp.
Make sure the key blank is securely fixed and properly aligned.
When everything is ready, click Continue.
Step 4: Enter the Key Bittings and Cut the Key

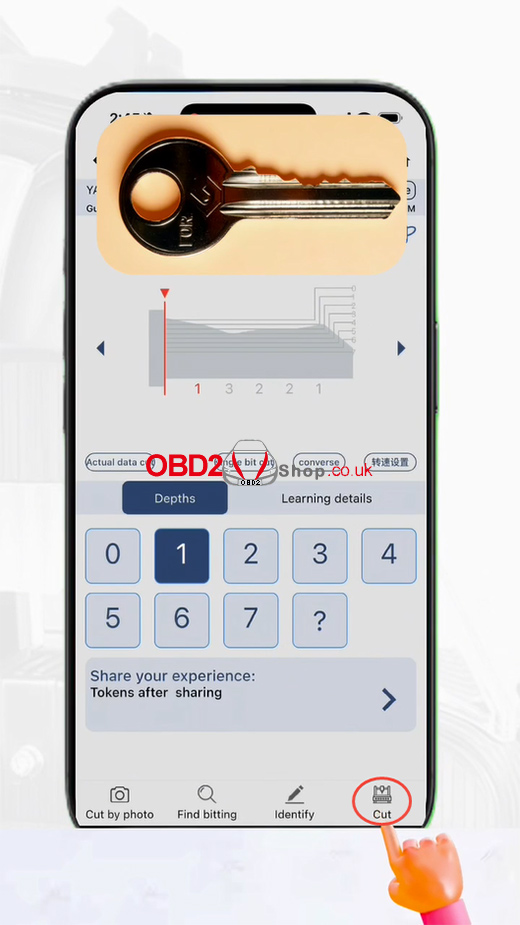

On the key profile interface, enter the key bittings according to the original key.
After confirming that all bitting data is correct, start the cutting process.

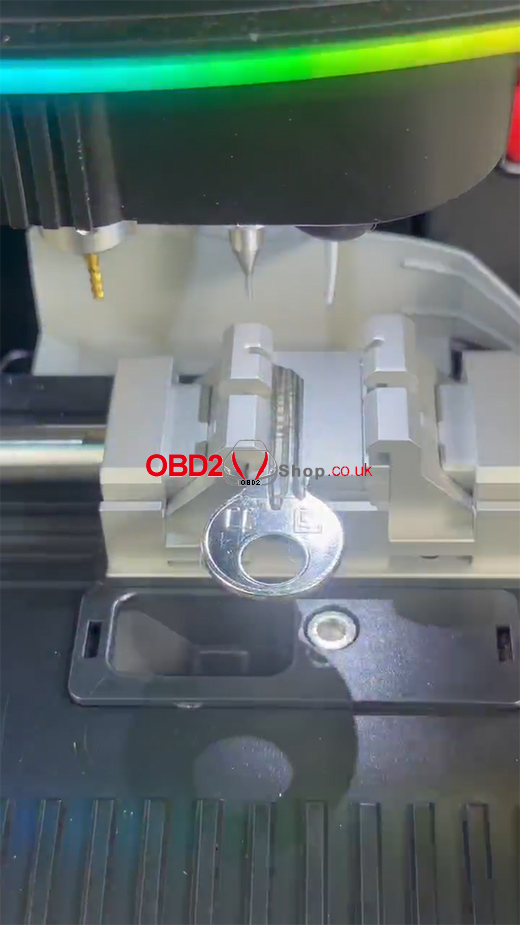

The 2M2 Tank will automatically cut the new Yale key according to the entered bittings.
Conclusion

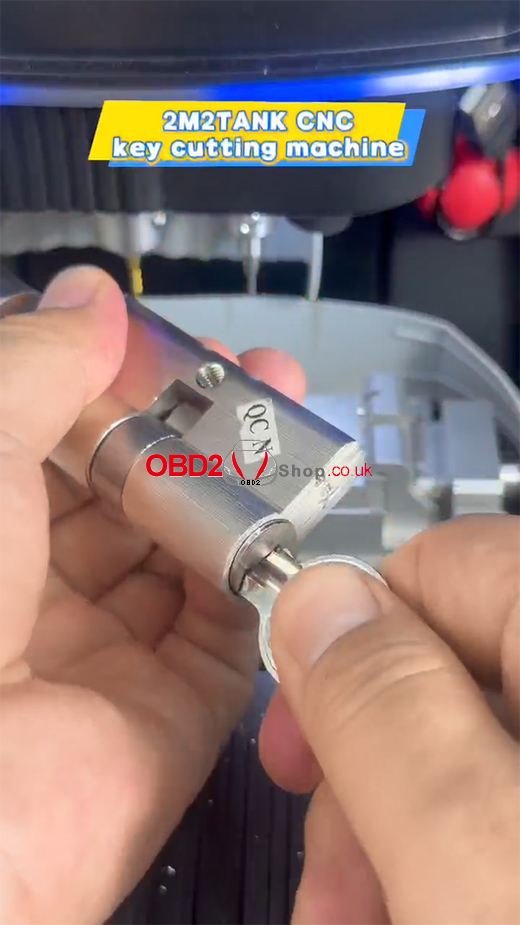

With the 2M2 Tank CNC Key Cutting Machine, cutting a Yale residential key by bittings is simple. Just select the correct key profile, choose the number of cuts, install the key blank properly, enter the bittings, and start cutting.
