Instruction OBDSTAR X300 DP Program Key for Passat 4th IMMO

Here is the instruction using OBDSTAR X300 DP key programmer and OBDSTAR RFID adapter (adapter chip reader for VAG 4th 5th IMMO function) on programming VAG Passat 4th IMMO Key

Guide:
Dissemble the dashboard instrument
Connect X300 DP with VCI and Dash
Turn ignition on (If it is the smart key, turn ignition OFF then turn it ON)

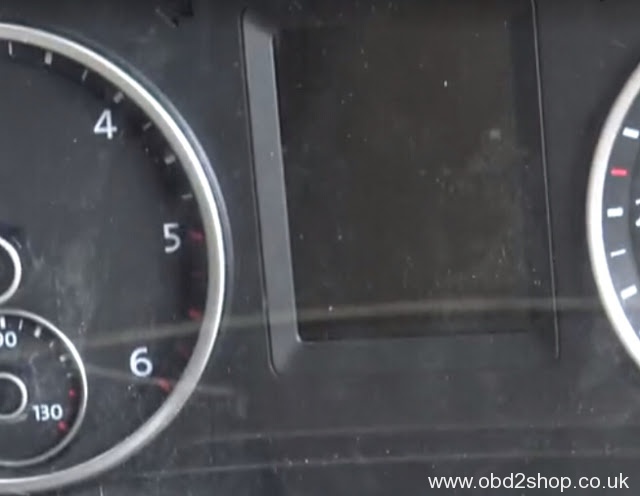

Make sure dash instrument is black

Reading eeprom data

Save data
Read IMMO data

Turn ignition on (If it is the smart key, turn ignition OFF then turn it ON)
Make sure dash instrument is black
Read VIN, CS code and PIN and key info

Select Generate OEM Dealer Key (Can start car)
Turn ignition on
Connect OBDSTAR RFID adapter with X300 DP

Insert the original key (chip) into RFID adapter

RFID Indicator flashes, remove the first key chip
Follow X300 DP prompt to insert second key chip
RFID indicator flashes, reading key data
dash indicators turn on

Generating dealer key in progress

Generate dealer key success

Done ! Test the new key, it works!
