Adding a new smart key to the 2025 BYD Formula Leopard Sealion 7is a straightforward process when using the Lonsdor K518 Pro. This guide provides a concise, step-by-step walkthrough of the programming procedure.
Preparation and Tools Needed
Before starting, ensure you have the following items ready:
Lonsdor K518 Pro Key Programmer
OBD communication cable
Original car key and the new smart key
A stable internet connection
Step 1: Generate the Smart Key
First, you must prepare the new key to be recognized by the vehicle’s system.
1. Navigate to Generate Smart Key > BYD > Formula Leopard >Sealion 7 2025 ID4A

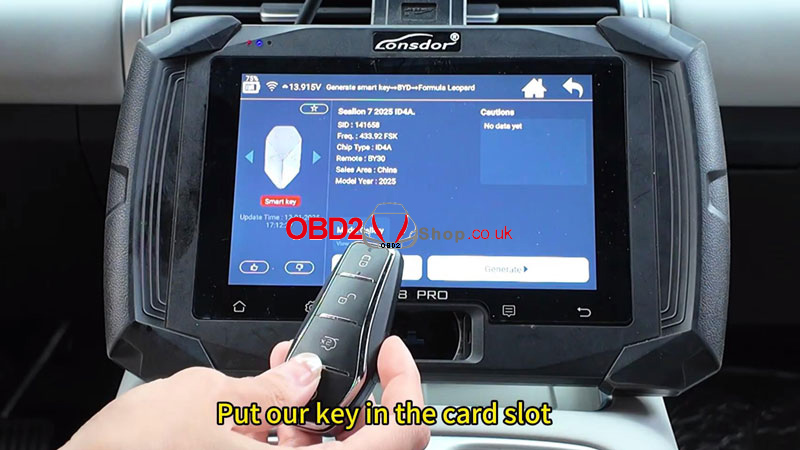

2. Place the new key into the K518 Pro’s card slot.

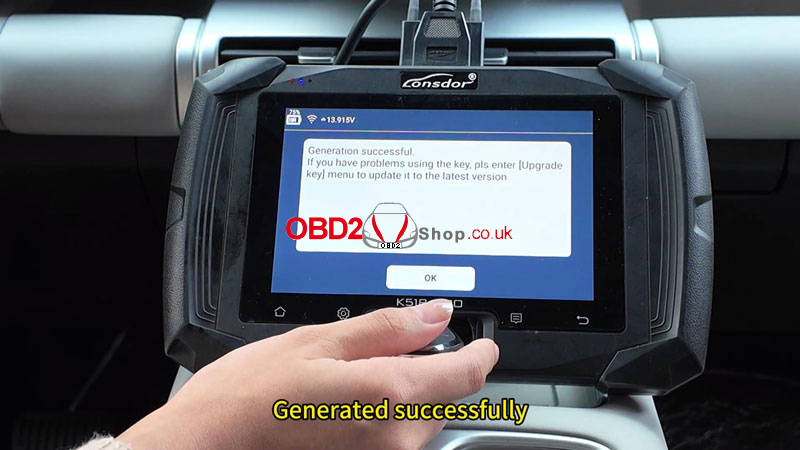

3. Click Generation and wait for the “Generated successfully” message.
Step 2: Read Data and Password
To access the immobilization system, you must retrieve the vehicle’s security data.

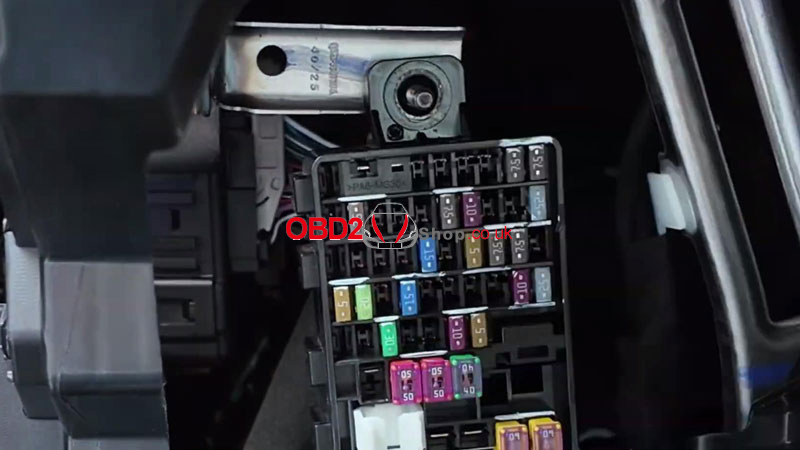

1. Locate and remove the cross-domain platform box located below the steering wheel to facilitate password reading.

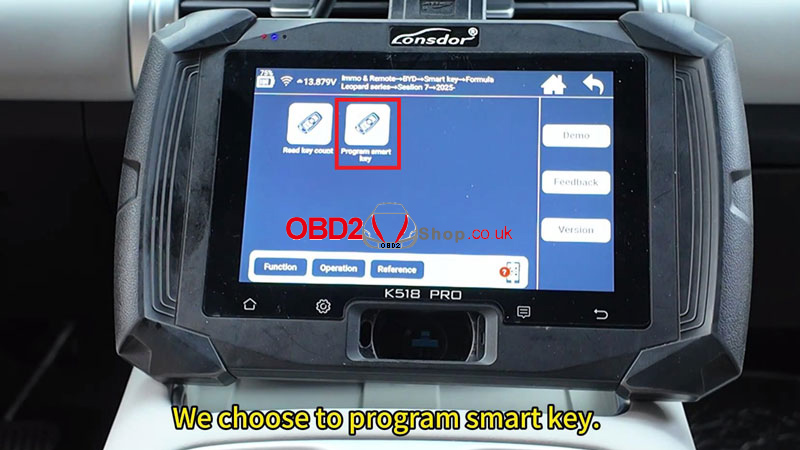

2. On the K518 Pro, select Immo & Remote > BYD >Smart Key > Formula Leopard Series > Sealion 7> 2025- > Program smart key
3. Follow the on-screen prompts: Turn off the ignition and turn on the hazard lights (flashing lights).

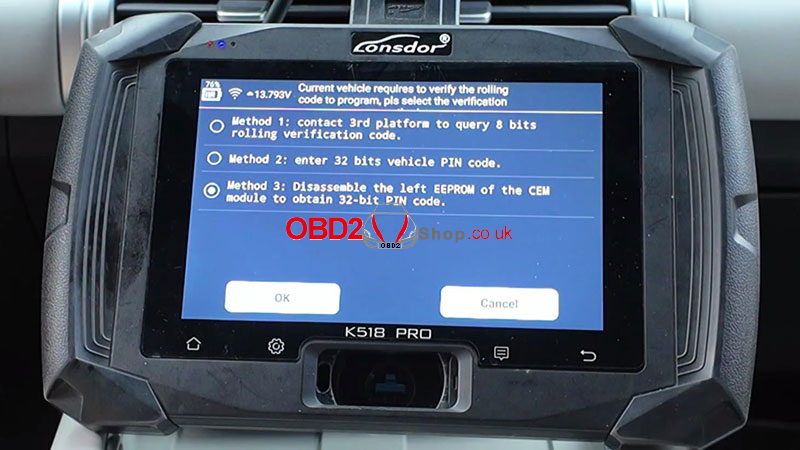

4. Select Method 3: Disassemble the left EEPROM of the CEM module to obtain the 32-bit PIN code

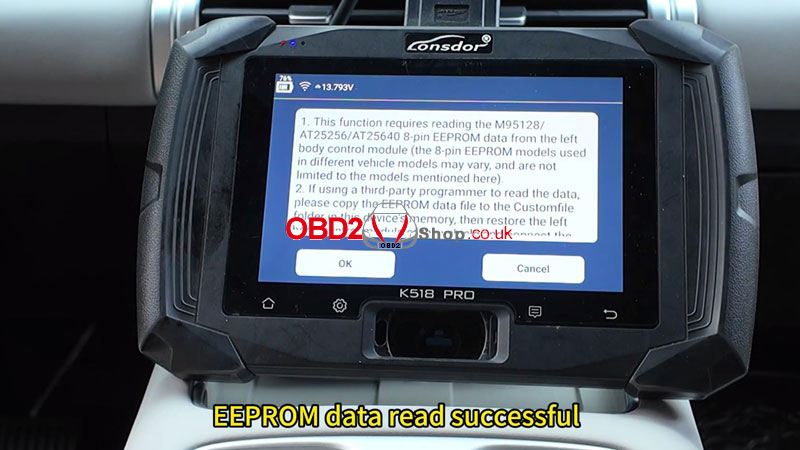

5. The device will read the EEPROM data. Once successful, save the file to your device.
Step 3: Program the Smart Keys
Note: All keys not present during this process will be deleted from the system. You can program up to 4 keys total.
1. Select the saved EEPROM file to begin programming.

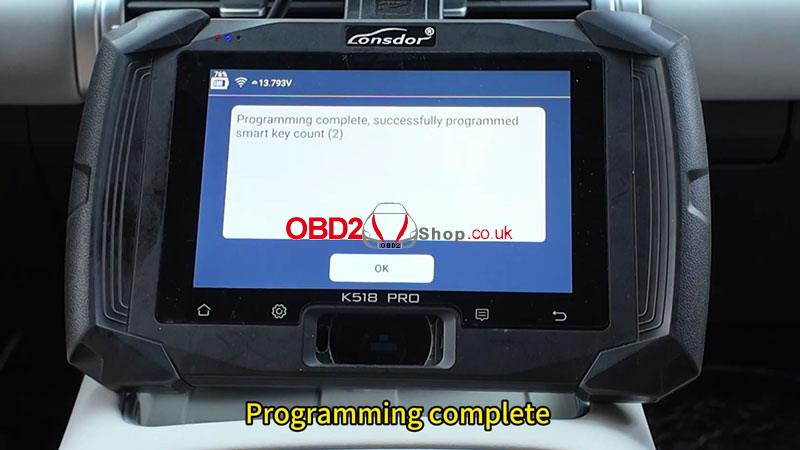

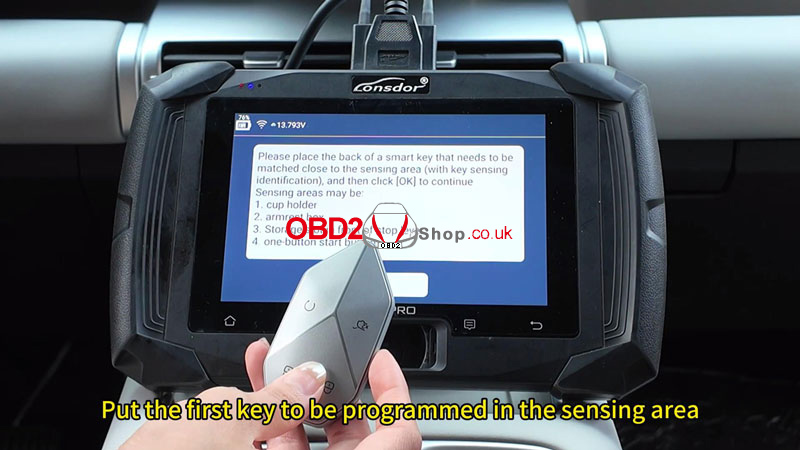

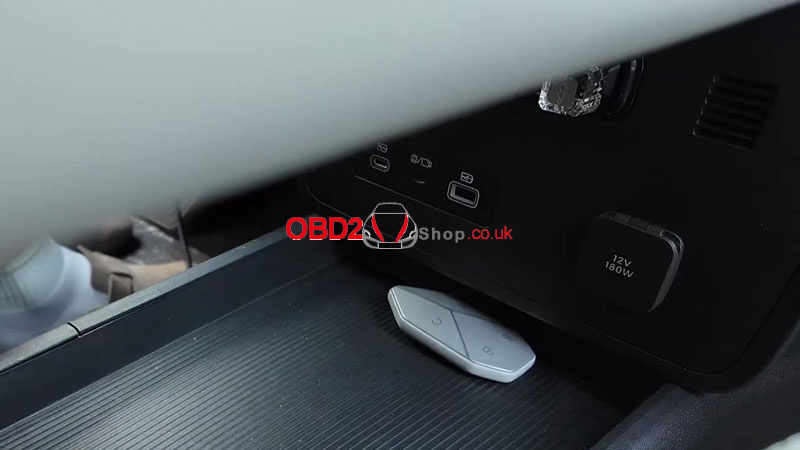

2. Program Key 1: Place the first key (original) in the vehicle’s sensing area and click OK until “Program complete” appears.

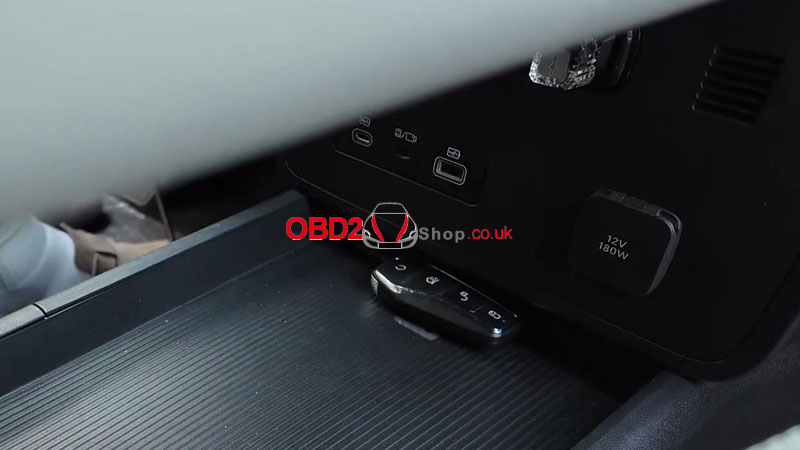

3. Program Key 2: Place the second key (new) in the sensing area and click OK.
4. Once both keys are registered, click Cancel to finish the session.
Step 4: Verify Functionality

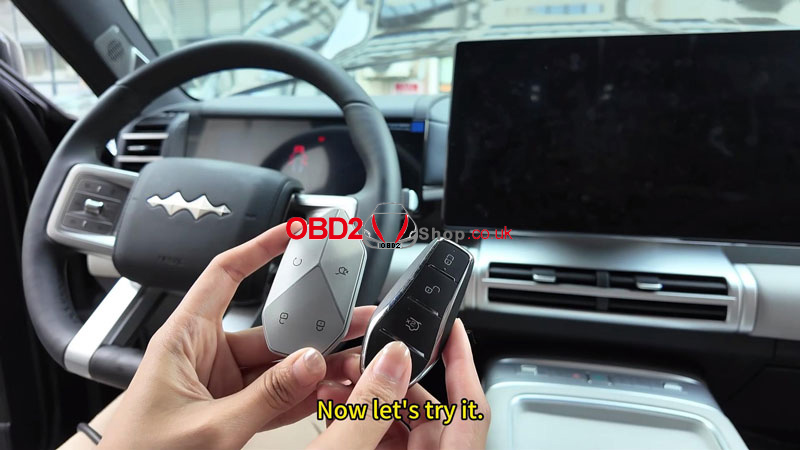

Always test both keys to ensure the immobilization and remote features are working perfectly.
Engine Start: Press the brake and the Start button with each key individually to confirm the engine starts.
Remote Features: Test the Lock and Unlock buttons on both the original and the new smart key.
The programming for your 2025 BYD Formula Leopard Sealion 7 is now complete.
