(Guide) How to Use VVDI Key Tool Generate Suzuki ID47 Remote

Here is the guide Use VVDI Key Tool Generate Suzuki ID47 Remote, hope it helps

Xhorse key tool for sale:

http://www.obd2shop.co.uk/wholesale/xhorse-vvdi-key-tool.html



Vvdi key tool functions confirmed:
Edit transponder, clone transponder, test frequency, clone Remote, generate remote, generate garage door remote controller, unlock smart card….ALL WORKED!
How to use vvdi key tool to edit transponder and test frequency:

This is the key to be generated



Go to TP Edit

Put the original key into the coil



It’s ID47 (Hitag 3) Unlocked 7983

Read failed

Back and go to Special TP

VVDI Special TP

PCF7936

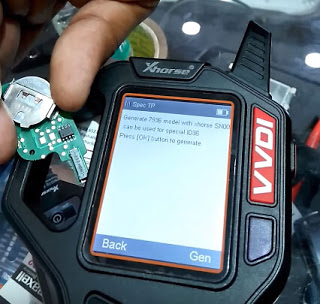

Generate 7936 model with xhorse SN00 can be used for special ID36
Press OK button to generate

Can’t find SN002

Take the remote away the coil and put it into the coil again

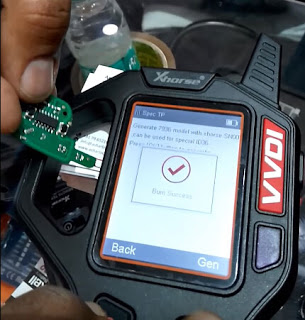

Burn success

TP Edit



Special TP

VVDI Special TP

ID47/38

Generate 7938x model with xhorse SN02 can be used for special ID47
Press OK button to generate

Burn success

TP Edit: It’s ID47 (Hitag 3) Unlocked 7983





Remote prepare

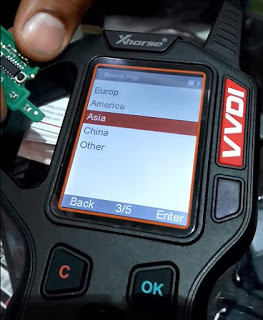

Asia

Suzuki

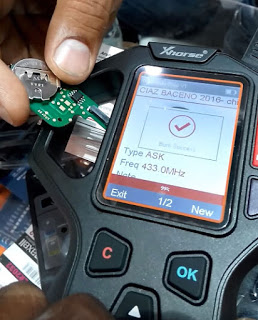

ACENO 2016- chip47

Type: ASK, Frequency: 433.0MHz

Wireless to generate remote



Frequency test

Mode: ASK, Frequency: 433.89MHz, Power: -89dBm



Xhorse vvdi key tool successfully edit transponder and test frequency
