Yanhua ACDP Module 42: MB DSM FBS4 Virgin & Data Transfer Solution

October 15, 2025 Sales OBD2shop.co.uk Car key programmer 0

Yanhua introduces the all-new ACDP Module 42, designed specifically for Mercedes-Benz DSM (FBS4) and DSM222 (FBS4) systems. This powerful module enables seamless virgin preparation and data transfer for a range of part numbers, making it an essential tool for automotive locksmiths, technicians, and Mercedes specialists.

Key Features:

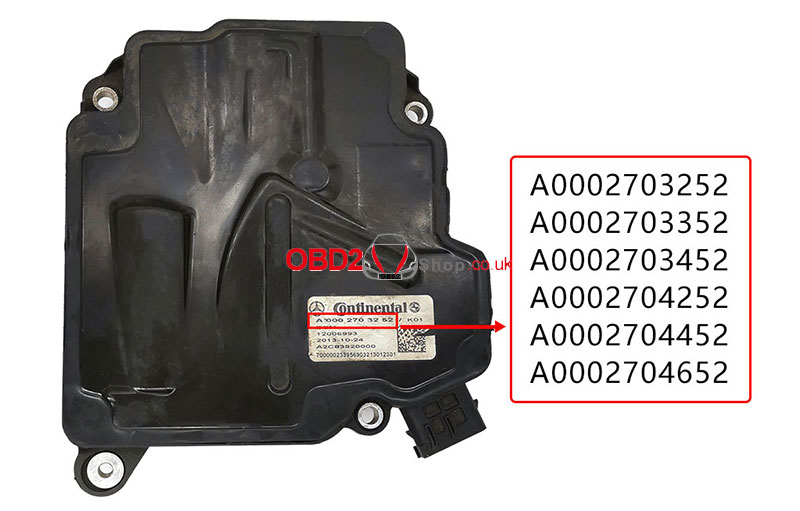

1. Supports MB DSM (FBS4) part numbers: A0002703252, A0002703352, A0002703452
2. Supports MB DSM222 (FBS4) part numbers: A0002704252, A0002704452, A0002704652
3. Enables quick and secure virgin and data transfer operations
4. Compatible with Continental S systems
yanhua-acdp-module-42-mb-dsm-fbs4-virgin-data-transfer-solution (1)

Must Be Used with YANHUA Mini ACDP 2
To unlock the full potential of Module 42, pair it with the YANHUA Mini ACDP 2 – the compact and versatile diagnostic and programming device trusted by professionals worldwide.

Easy to Use

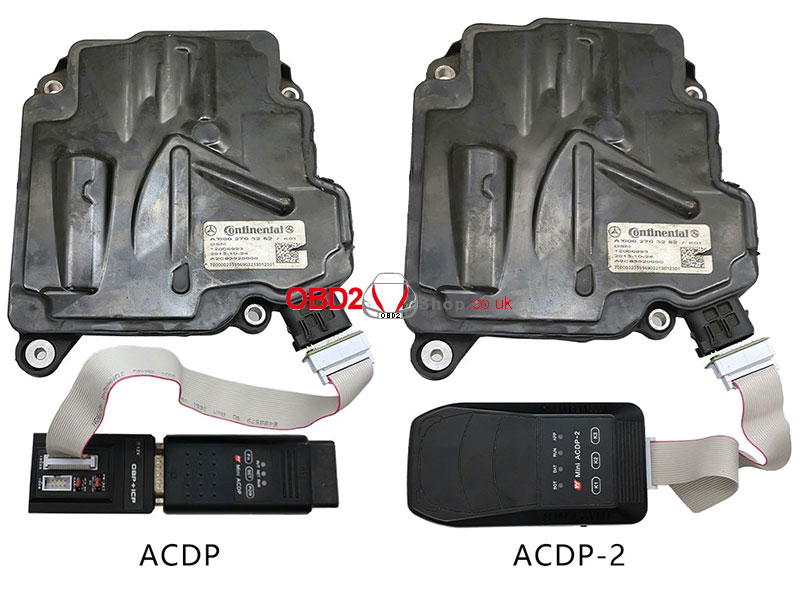

Follow the simple connection diagram via ACDP or ACDP-2 interfaces for fast and reliable results.
yanhua-acdp-module-42-mb-dsm-fbs4-virgin-data-transfer-solution (2)

How to connect Module 42 with ACDP1?

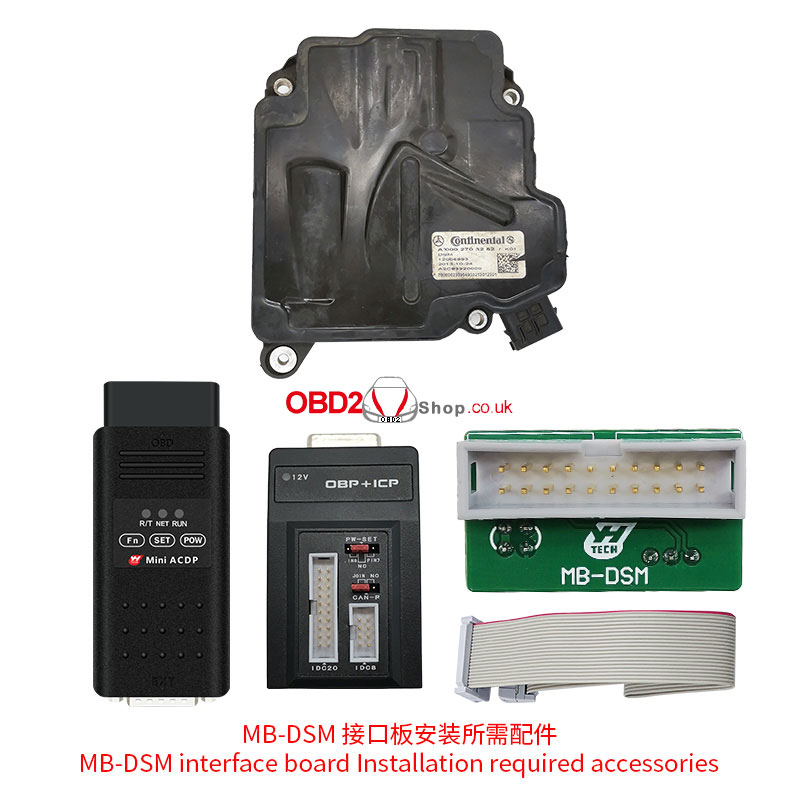

1. MB-DSM interface board: Installation required accessories.

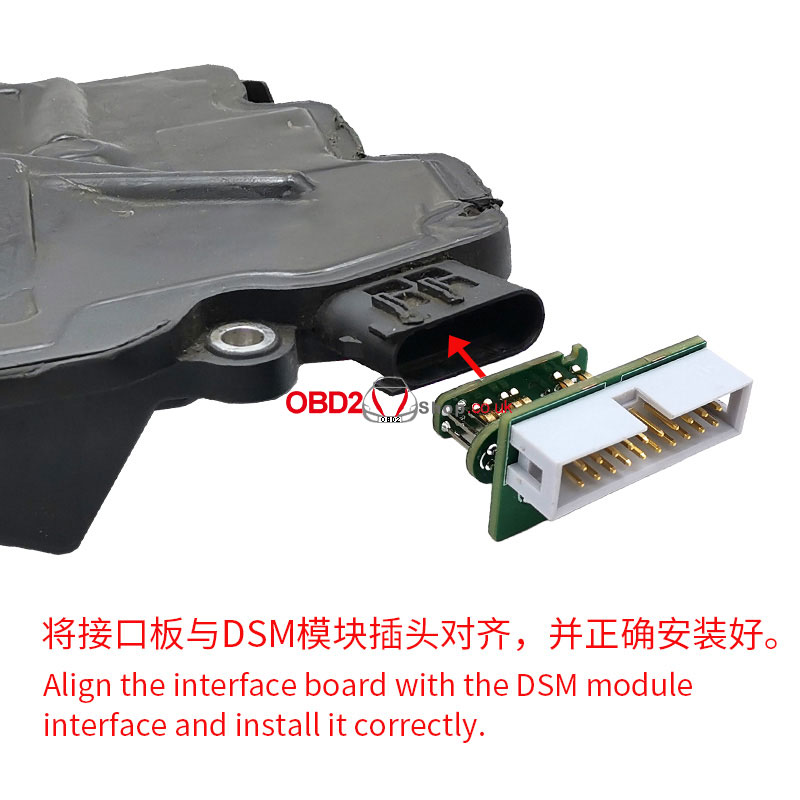

2. Align the interface board with the DSM module interface and install it correctly.

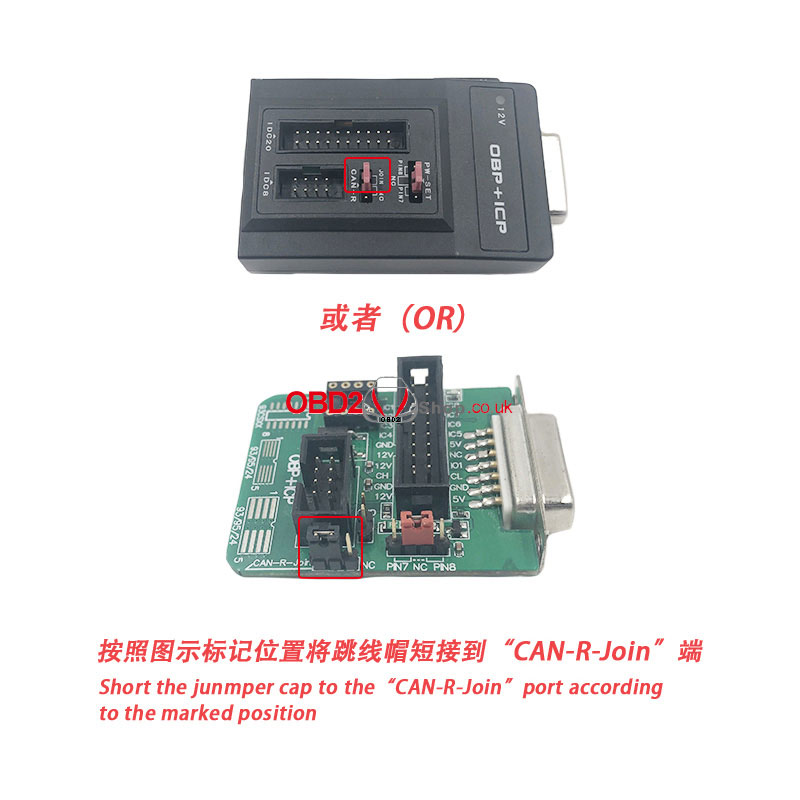

3. Short the jumper cap to the “CAN-R” port according to the marked position.

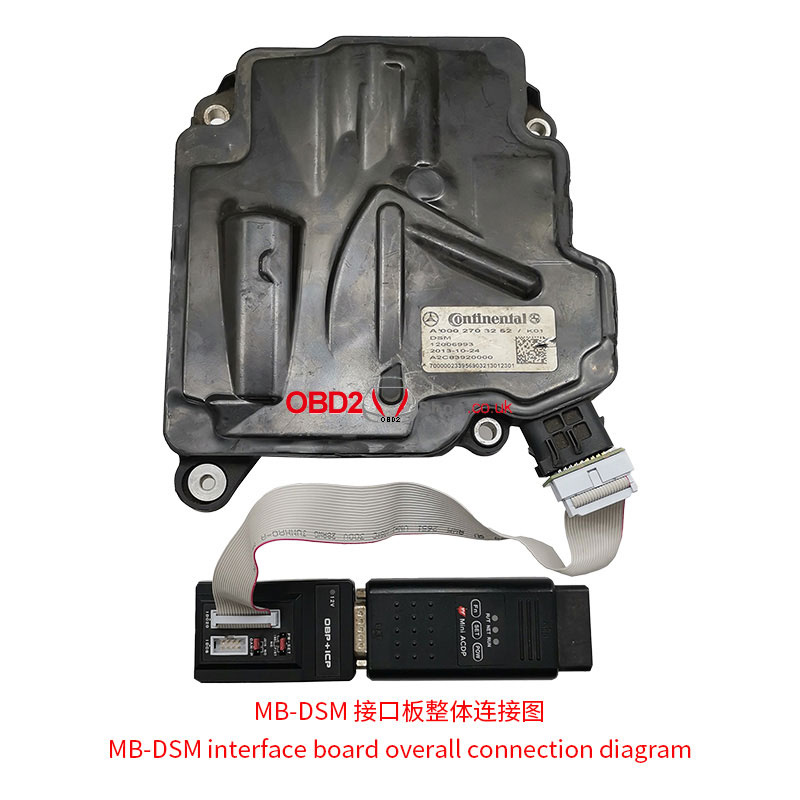

4. MB-DSM interface board overall connection diagram.
yanhua-acdp-module-42-mb-dsm-fbs4-virgin-data-transfer-solution (3)

yanhua-acdp-module-42-mb-dsm-fbs4-virgin-data-transfer-solution (4)

yanhua-acdp-module-42-mb-dsm-fbs4-virgin-data-transfer-solution (5)

yanhua-acdp-module-42-mb-dsm-fbs4-virgin-data-transfer-solution (6)

yanhua-acdp-module-42-mb-dsm-fbs4-virgin-data-transfer-solution (7)

How to connect Module 42 with ACDP2?

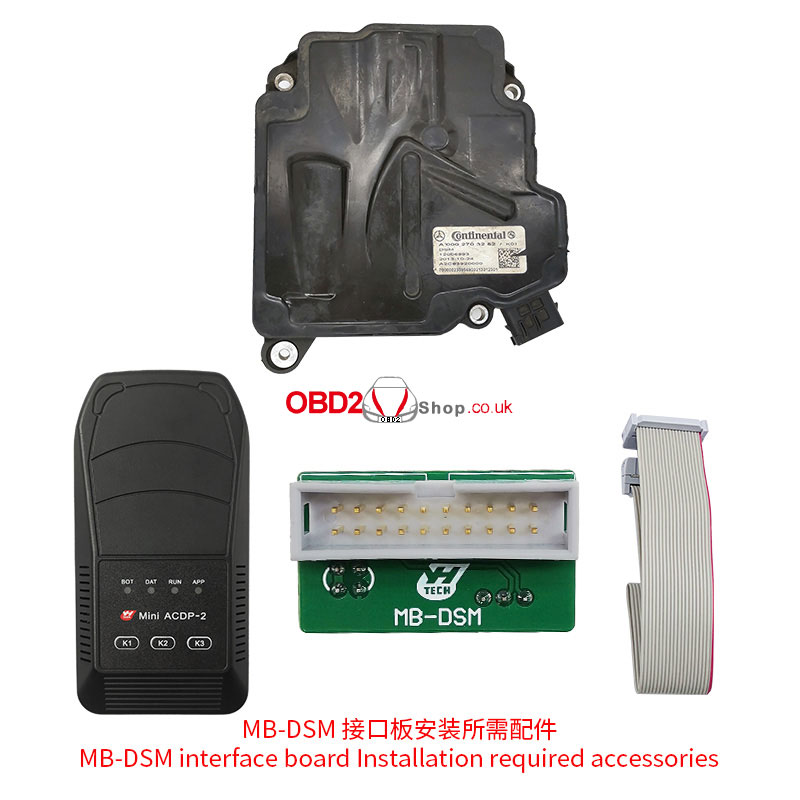

1. MB-DSM interface board: Installation required accessories.
2. Align the interface board with the DSM module interface and install it correctly.

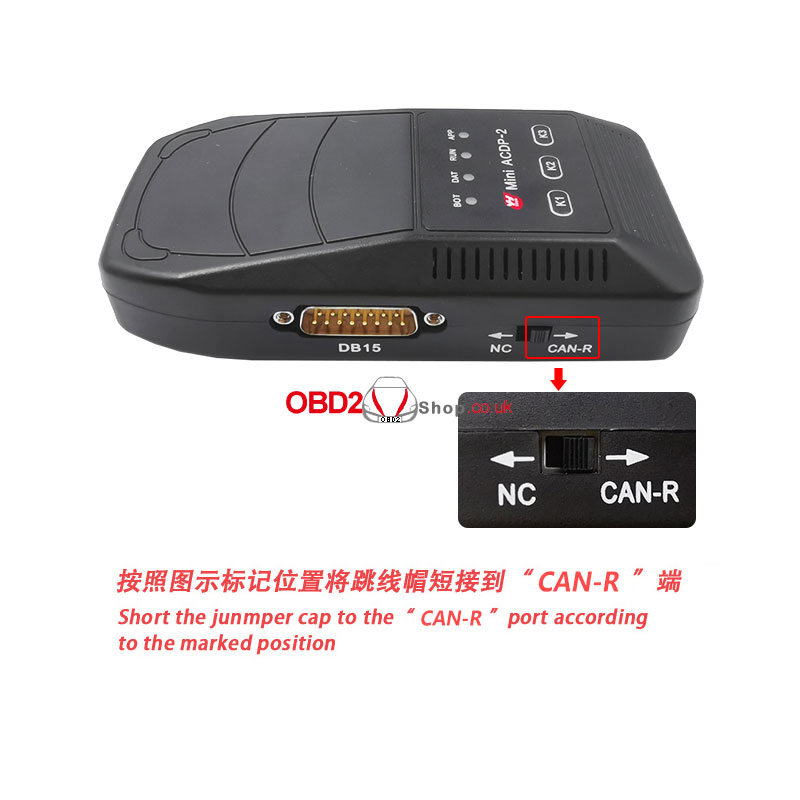

3. Short the jumper cap to the “CAN-R” port according to the marked position.
4. MB-DSM interface board overall connection diagram.
yanhua-acdp-module-42-mb-dsm-fbs4-virgin-data-transfer-solution (8)

yanhua-acdp-module-42-mb-dsm-fbs4-virgin-data-transfer-solution (9)

yanhua-acdp-module-42-mb-dsm-fbs4-virgin-data-transfer-solution (10)

yanhua-acdp-module-42-mb-dsm-fbs4-virgin-data-transfer-solution (11)



Why Choose YANHUA ACDP Module 42?
Save time and effort with dedicated Mercedes-Benz support
Boost your service capabilities with the latest FBS4 technology
Trusted by technicians globally – backed by YANHUA quality

ACDP Configuration List

Adapters/Parts Picture Quantity Adapters/Parts Functions
MB-DMS interface board



 yanhua-acdp-module-42-mb-dsm-fbs4-virgin-data-transfer-solution (12) 1pc Applicable to connect MB DMS(FBS4) module

Upgrade your toolkit today and stay ahead in the automotive programming industry!

Learn more or purchase:
E-mail: Sales@OBD2shop.co.uk
WhatsApp: +86 13983755934
Telephone: +86 13983755934
WeChat: +86 13983755934

www.obd2shop.co.uk
