This article provides a step-by-step guide on how to perform mileage correction on a Toyota S6J3001 instrument cluster using the ACDP and ACDP Module 41.
Preparation:

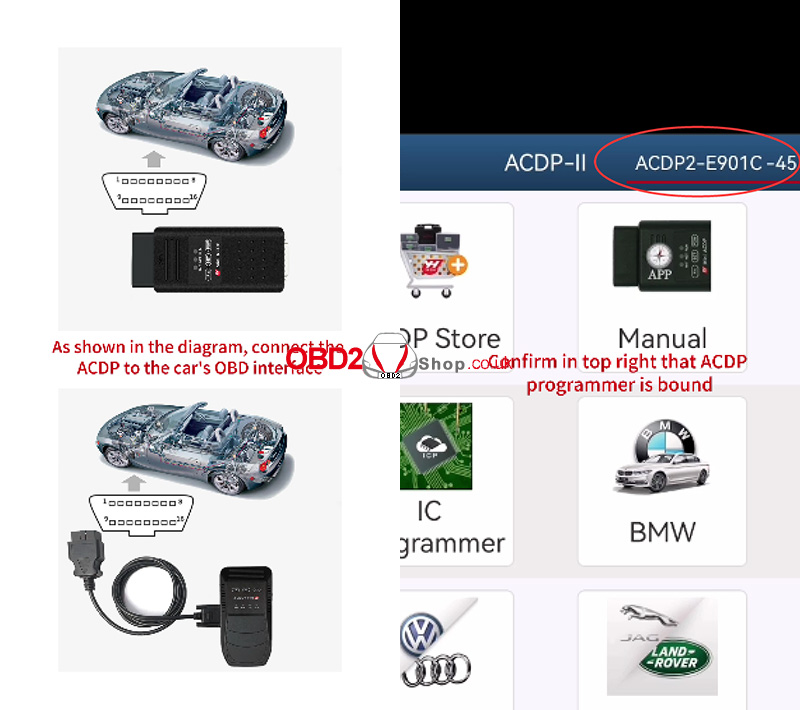

As shown in the picture, connect the ACDP device to the vehicle’s OBD interface.
Open the ACDP application and ensure that the ACDP programmer is bound (check the top right corner of the screen).
Entering the Correction Menu

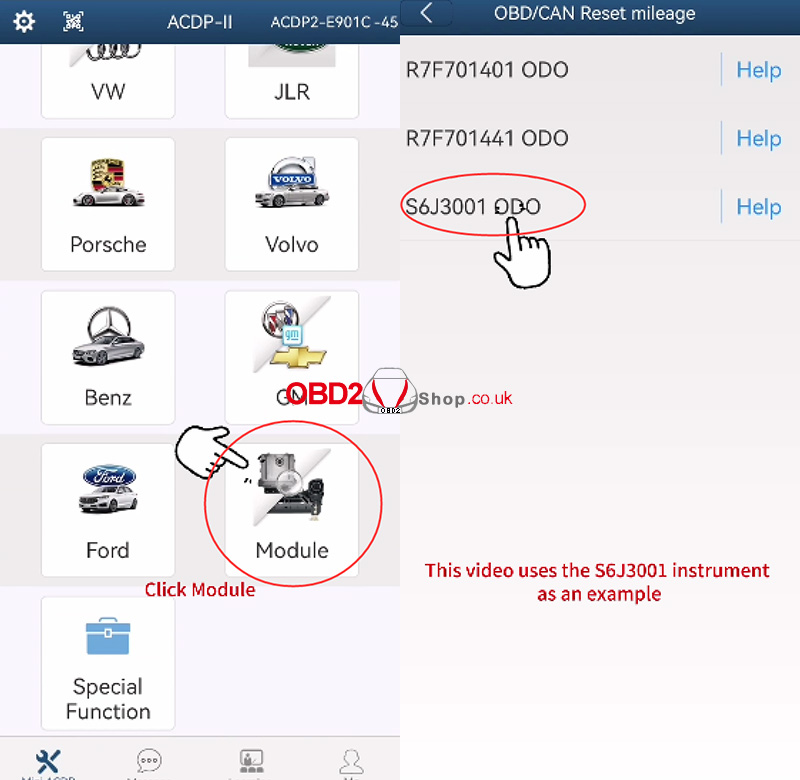

In the ACDP app, navigate to:
“Module” → “TOYOTA ODO” → “OBD/CAN Reset mileage”
Then, select the instrument model. This demonstration uses the S6J3001 instrument as an example.
Step 1: Identify Info
Connect ACDP to the OBD-II port.
Turn on the ignition — the ODO display must be lit.

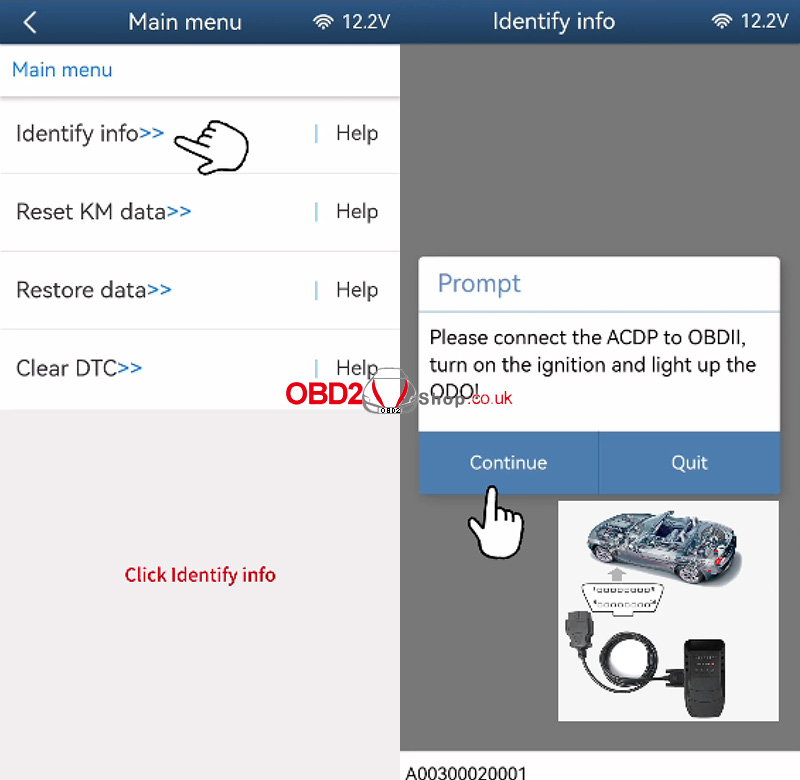

Click “Identify Info”.
The system will read instrument information. Wait until the process completes.
Step 2: Reset KM Data

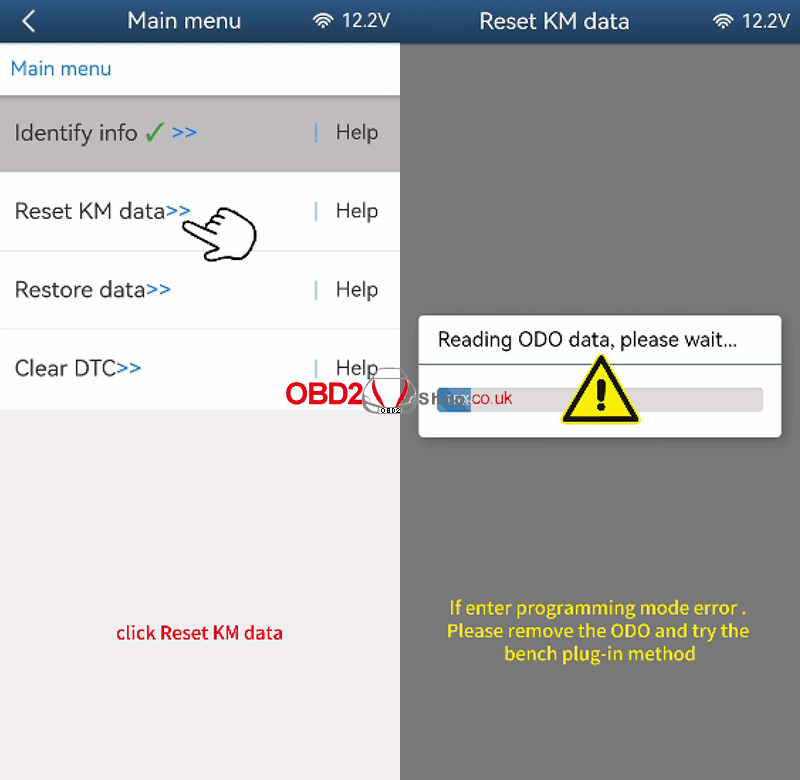

Click “Reset KM data”.
The system will attempt to read ODO data.

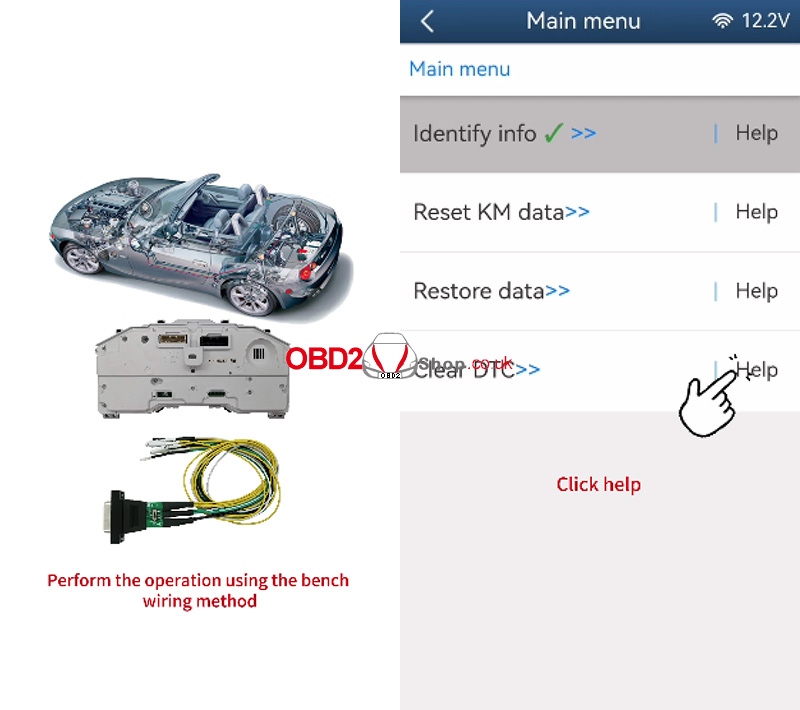

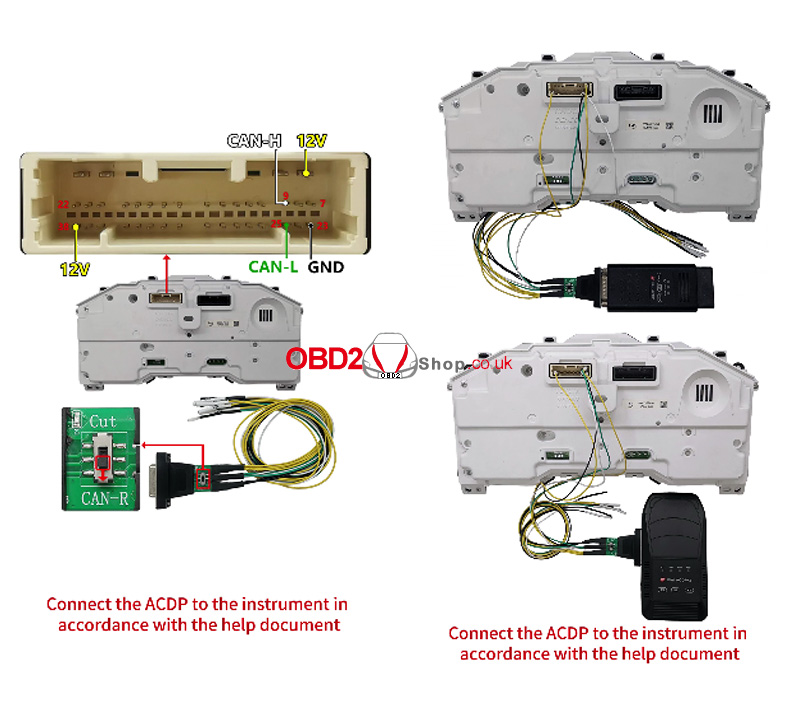

If an error occurs indicating that programming mode cannot be entered, remove the instrument cluster from the dashboard and proceed with the bench wiring method as described in the ACDP help documentation.
Step 3: Bench Connection & Data Reset

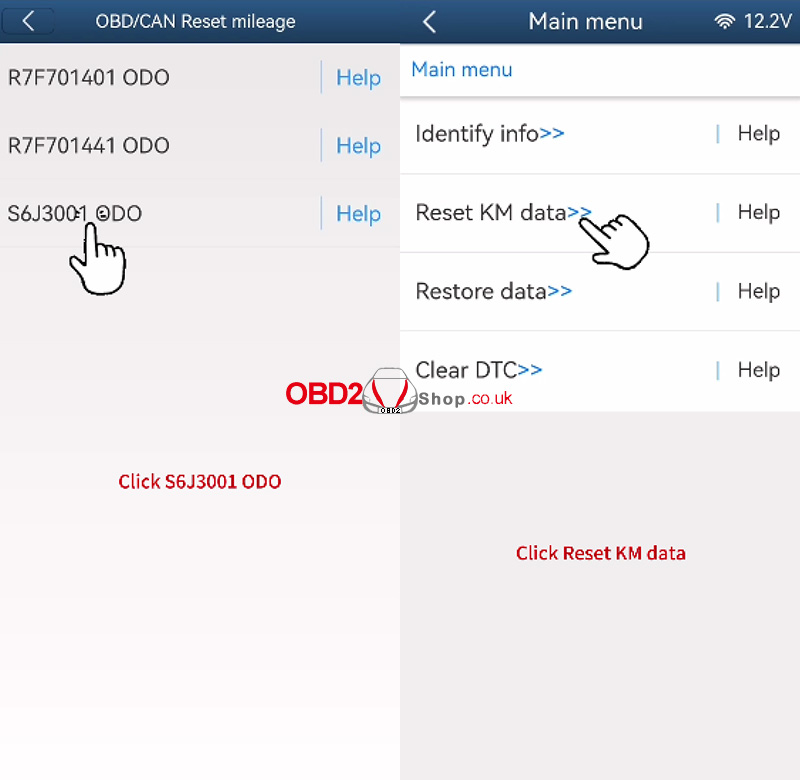

After connecting the ACDP to the instrument via the bench method, select again:
“S6J3001 ODO” → “Reset KM data”
The system will prompt you to back up the original ODO data. Save the file with a name ending in Orig.bin and note the backup path and time.

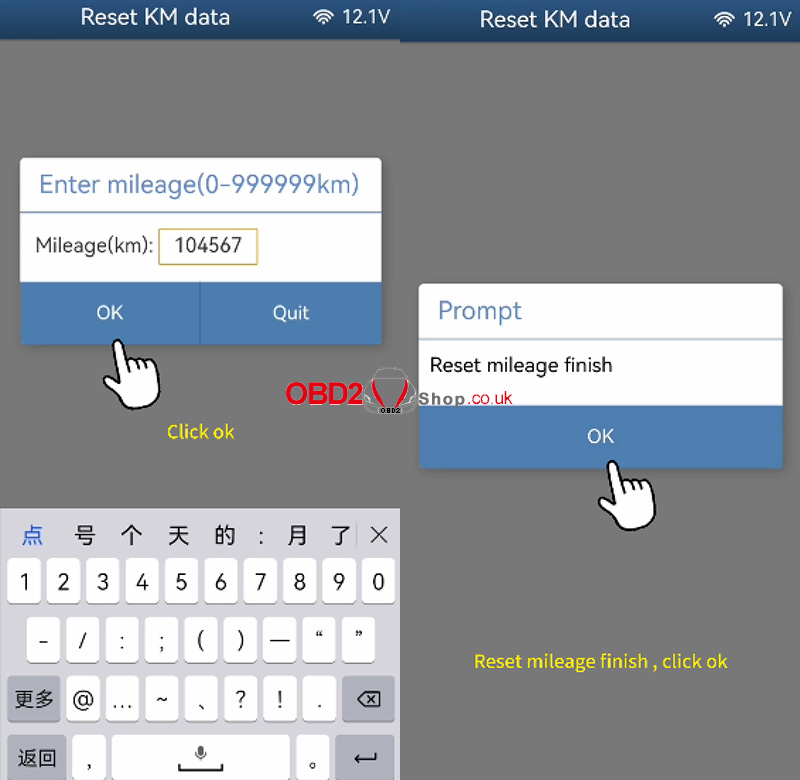

Enter the new mileage value.
A warning will appear:
“Programming is about to begin. Do NOT power off or unplug the device!”
Click “Continue” to start the process.
Once completed, the system will confirm: “Reset mileage finish.”
Step 4: Verify Changes

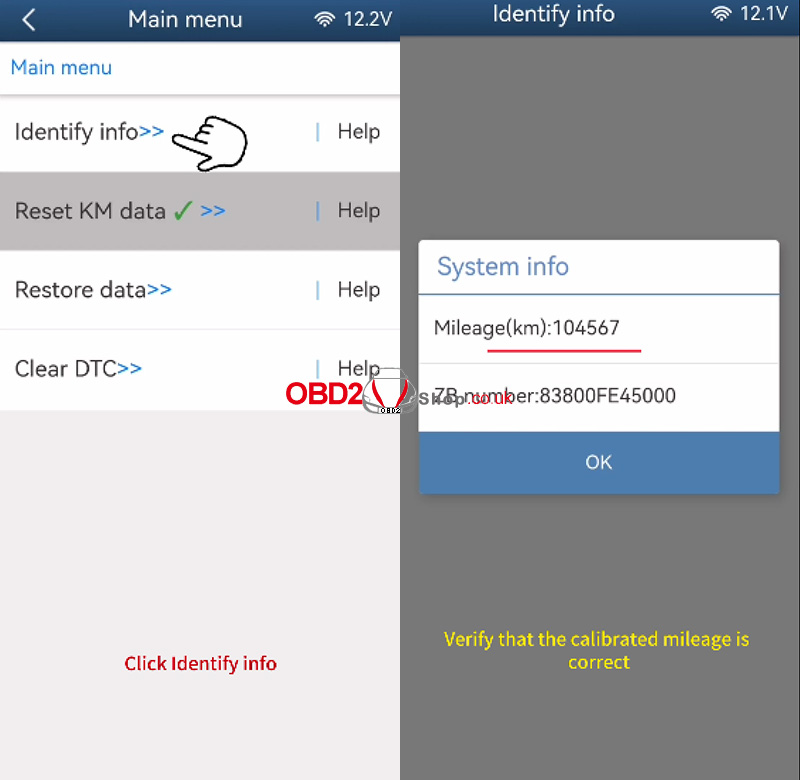

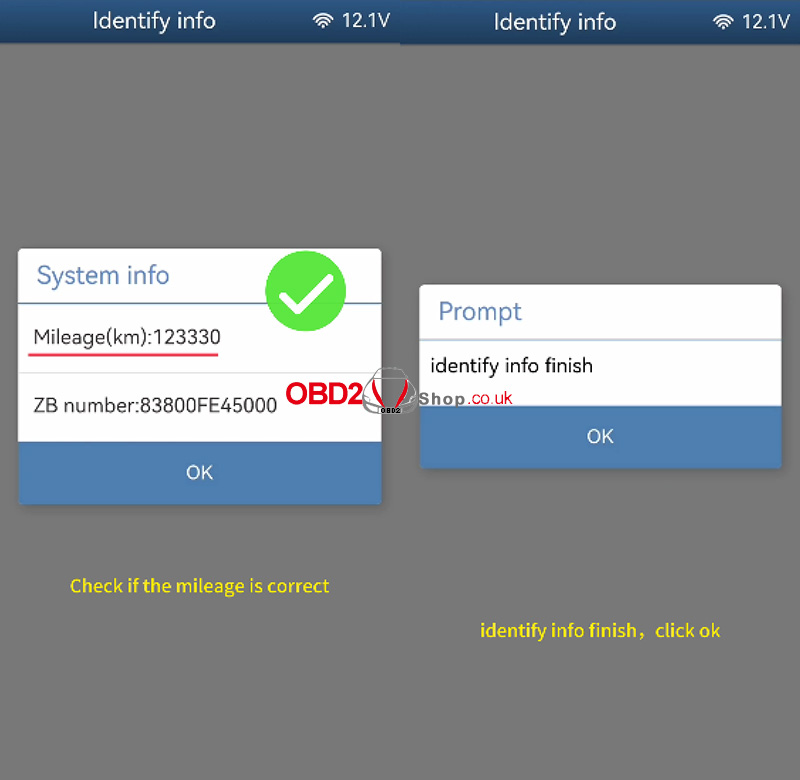

Click “Identify Info” again to check the instrument information.
The mileage should now be updated successfully.
Video Tutorial
For a visual demonstration, please watch the video:
Notes:
Always back up the original data before programming.
Use anti-static precautions when handling the instrument cluster.
Ensure stable power and connection during writing.
For further support, refer to the ACDP user manual or contact technical support.
