In this guide, we’ll walk you through how to use the KD-MP specific soldering-free clip, using the Touareg PCB as an example.
Step 1: Access the Wiring Diagram

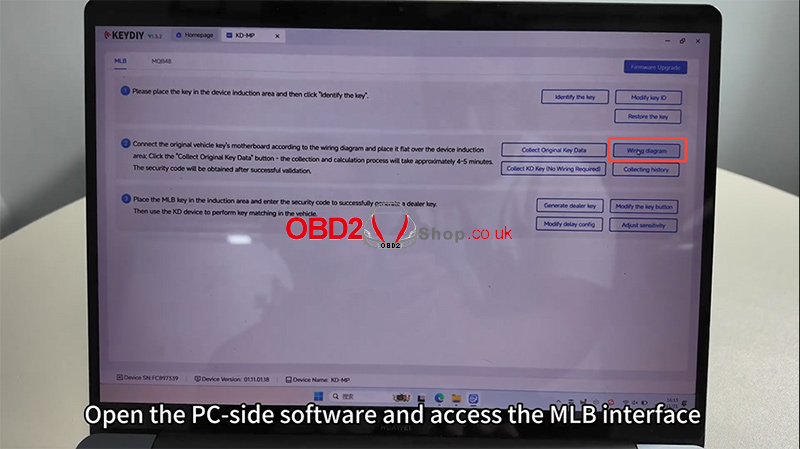

Open the PC-side software and navigate to the MLB interface.
Click on the [Wiring diagram] option to find the corresponding wiring diagram for your target PCB.
Step 2: Prepare the PCB

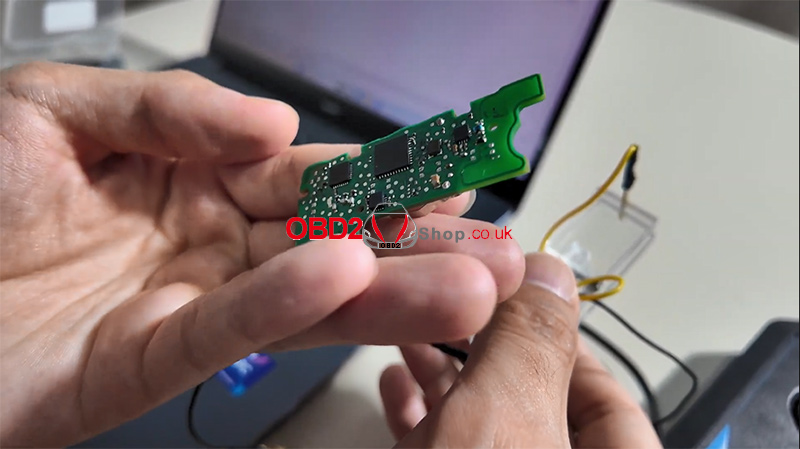

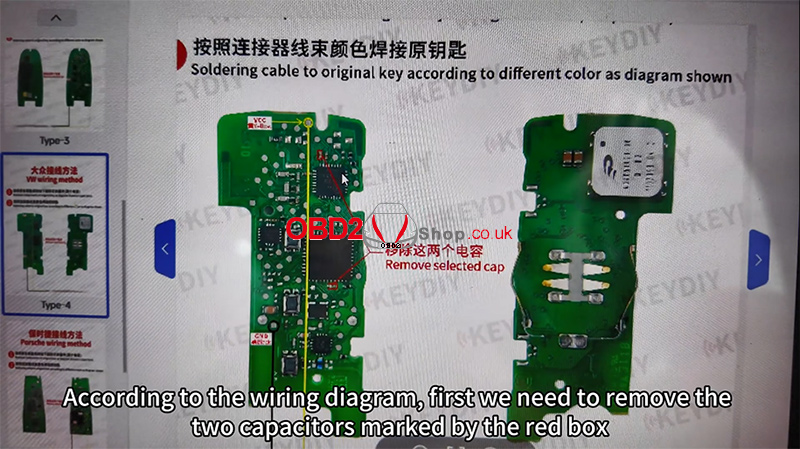

According to the wiring diagram, locate and remove the two capacitors marked in the red box.
Step 3: Attach the Clip

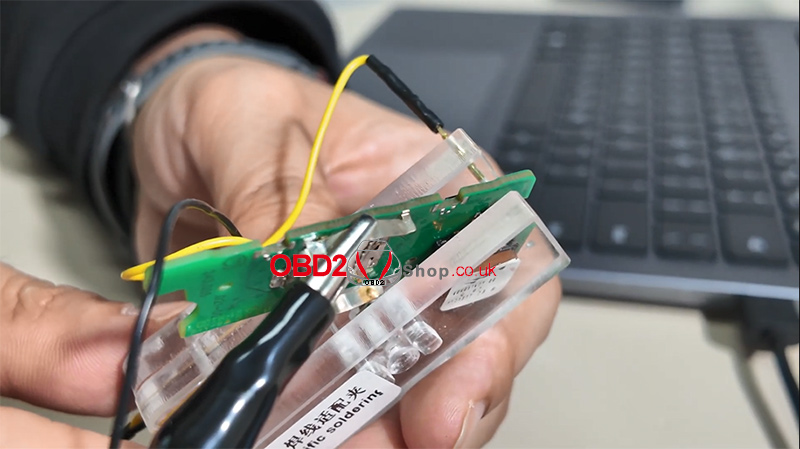

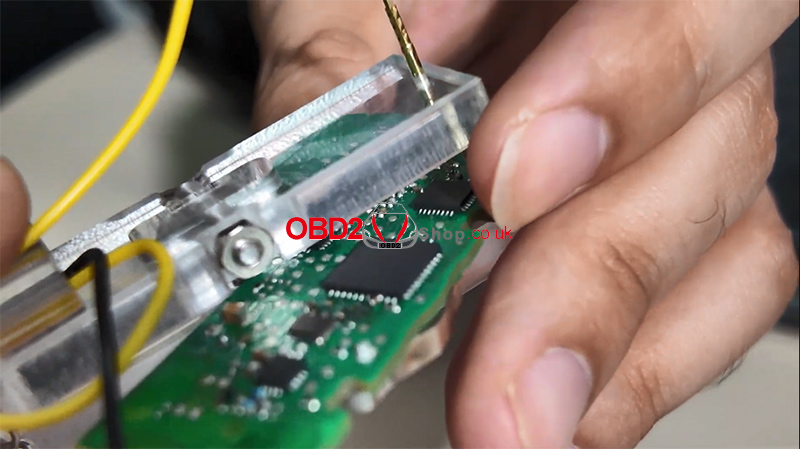

Clip the red pin onto the VCC position (marked by the yellow circle).
Clip the black pin onto the GND position (marked by the black circle).
Step 4: Connect the Harness to KD-MP

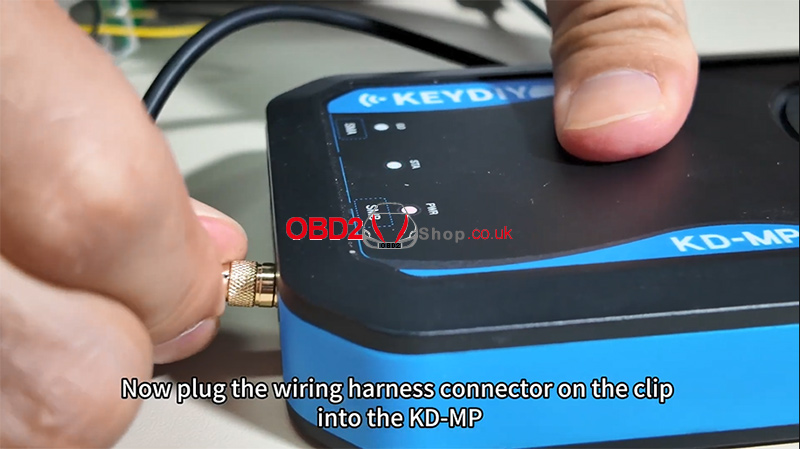

Plug the wiring harness connector from the clip into the KD-MP device.
Step 5: Position the PCB and Collect Data

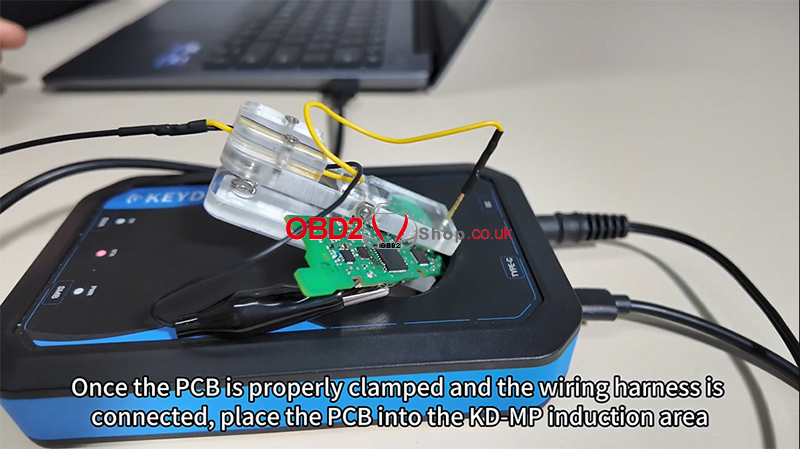

Once the PCB is securely clamped and the harness is connected, place the PCB into the KD-MP induction area.

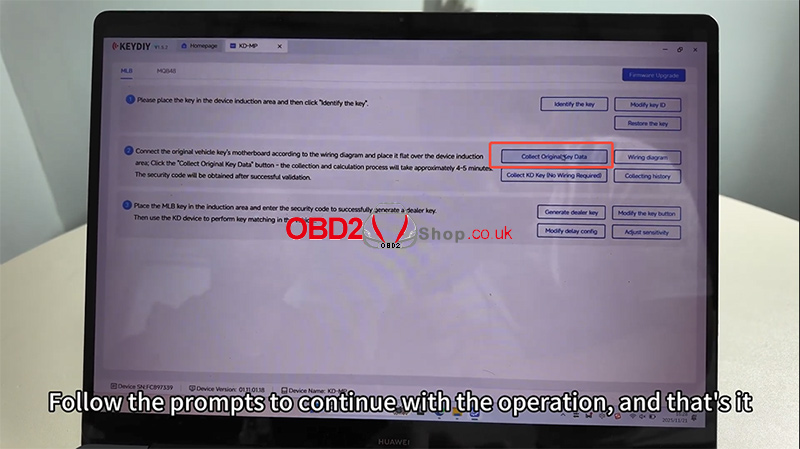

Turn off any interfering images or displays, then click [Collect Original Key Data] in the software.
Follow the on-screen prompts to complete the operation.
Video Guide
For a visual walkthrough, check out our video tutorial:
Final Notes
With the Keydiy KD-MP soldering-free clip, programming keys becomes a straightforward and solder-free process. Always ensure proper connections and follow software instructions carefully for optimal results.
