Xhorse VVDI PROG VVDI-Prog PCB Layouts

We know Xhorse Company is famous for its super quality OBD tools, such as VVDI2 Full, VVDI MB Tool,VVDI Prog, Condor XC-mini key cutting machine etc.

VVDI-Prog is built with high quality PCB circuit board as well.

VVDI-Prog advantages:

1) The built-in update software allows user to update VVDI Prog firmware timely.
2) High-speed USB communication interface enable the software automatically connect.
3) Smart operation mode: the possible causes of error will be listed
4) Reserve ports: for future update.
5) The self-test function enable you check if the machine works well.
6) Can supply power via USB cable, the software will automatically prompt if the external USB power supply is needed.

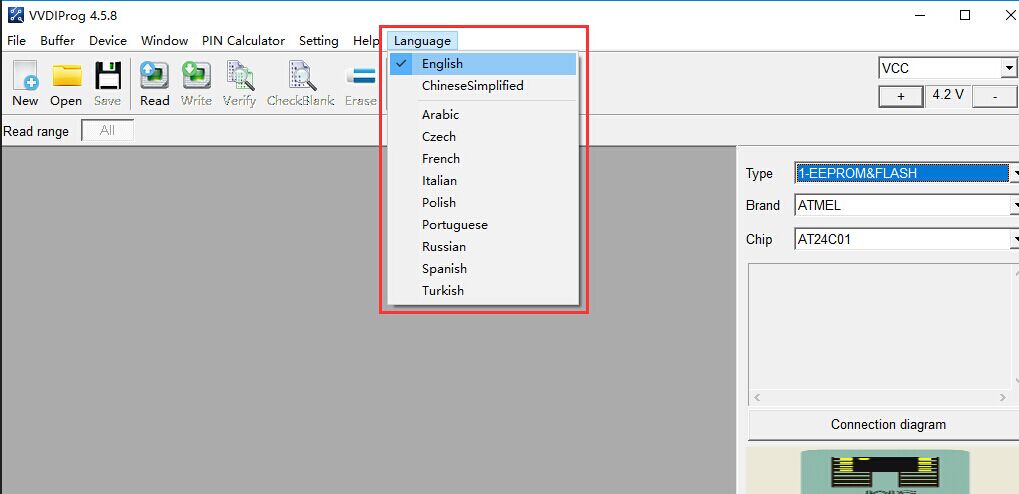

7) Add Arabic, Czech, Spanish,French, Italian, Portuguese,Russian, Turkish, support select in Language option

PCB circuit board comparison:
VVDI-PROG vs. Orange 5

VVDI Prog has STarm, hardware is complicated.
LPT port used for ICP, not for linking with pc
Software does not need activation.

VVDI programmer connection lines

VVDI-prog functions & descriptions

VVDI-PROG & other ECU programmer (xprog-m, R270, Orange etc) comparison

VVDI Prog screenshot from software on PC

VVDI Pro programmer Parts List


VVDI Adapter List

VVDI Pro support chip list:
