The 2M2 Tank CNC key cutting machine is designed to support a wide variety of keys. To achieve accurate results, it is important to choose the correct cutter for each type of key.
In this guide, we will introduce the different cutters used with the 2M2 Tank CNC key cutting machine and explain which keys each cutter is designed for.

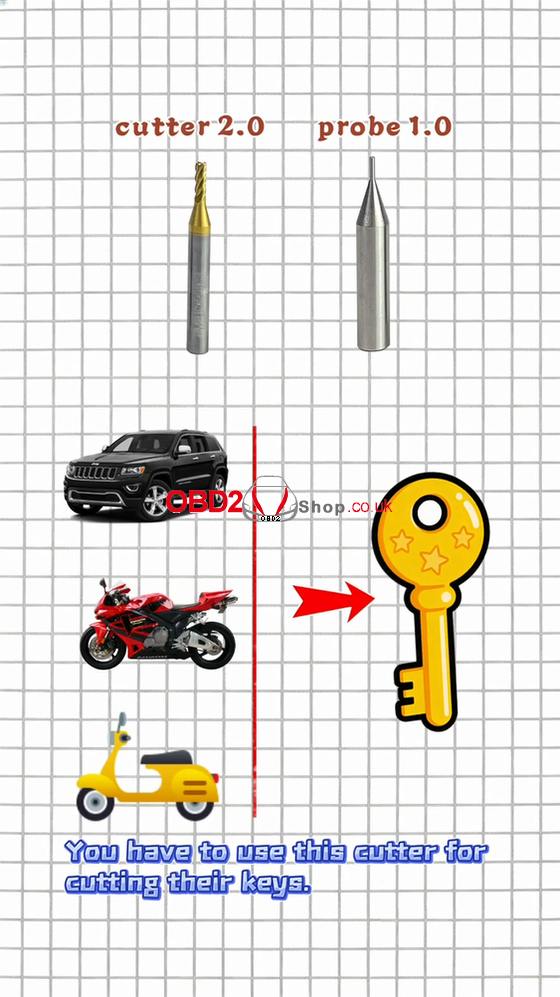

1. Cutter 2.0 with Probe 1.0
Cutter 2.0 with Probe 1.0 is the most commonly used.
It is mainly used to cut keys for:
Vehicles
Motorcycles
Bicycles
This cutter is included in the standard package and is suitable for most everyday key-cutting tasks.

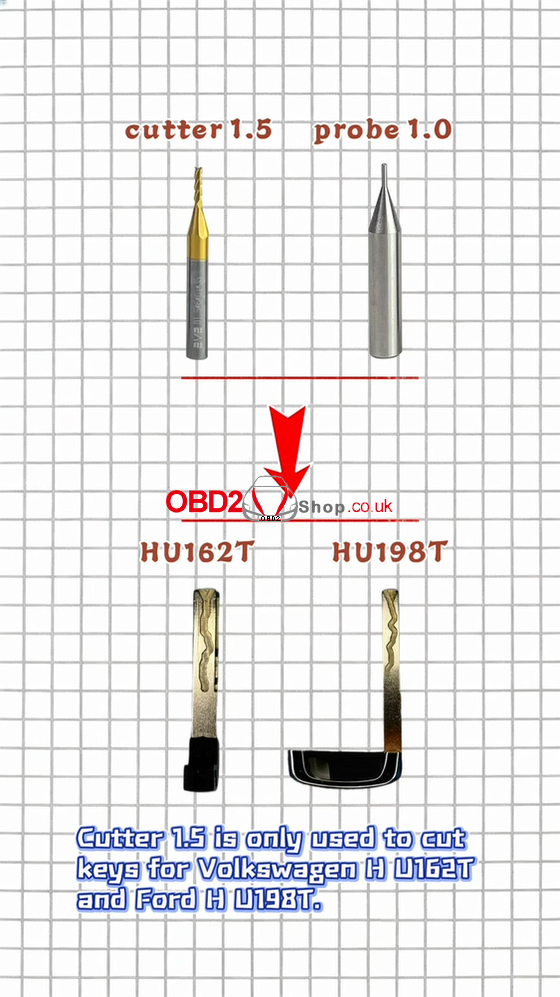

2. Cutter 1.5
Cutter 1.5 is mainly used for specific vehicle keys, including:
Volkswagen HU162T
Ford HU198T

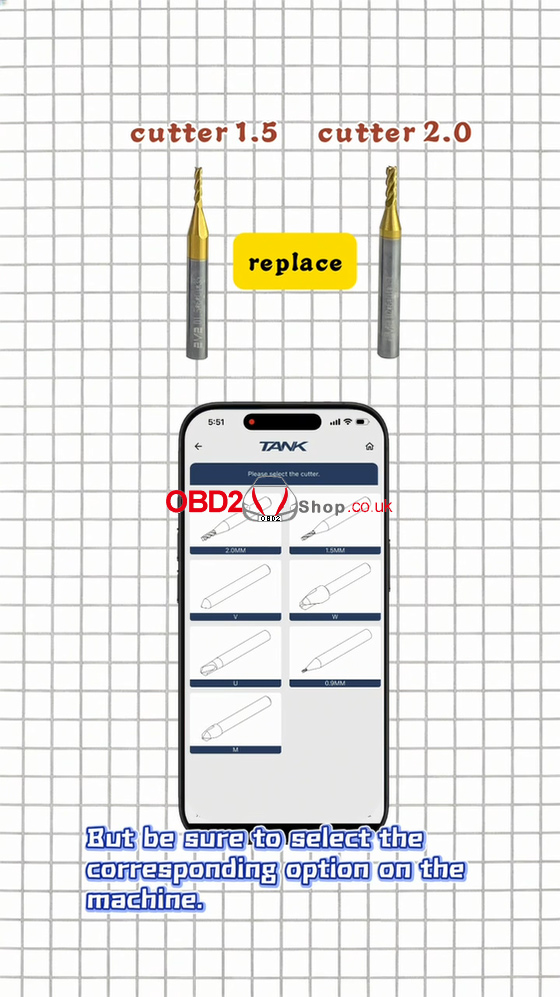

In some situations, Cutter 1.5 can also replace Cutter 2.0. However, when doing so, you must select the corresponding option on the machine and perform machining calibration to ensure cutting accuracy.

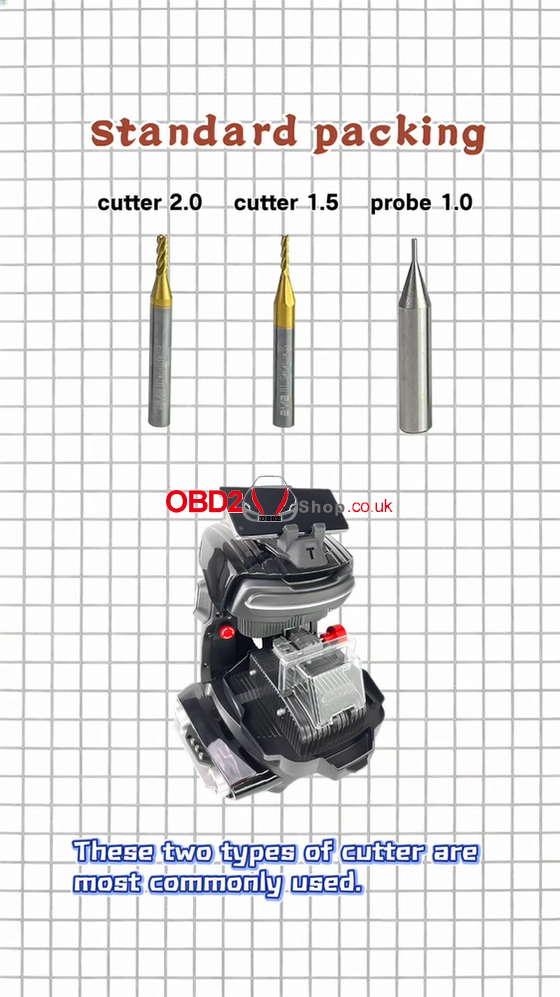

Cutter 1.5 and 2.0 are the two most frequently used cutters and are included in the standard packing.

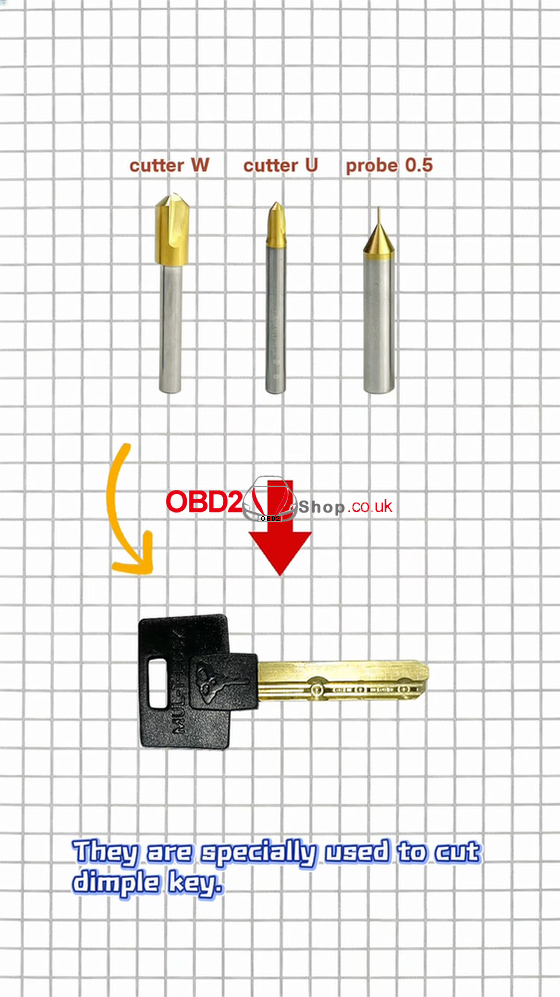

3. Cutter W + Cutter U + Probe 0.5
These cutters are specially designed for dimple keys.
The combination of:
Cutter W
Cutter U
Probe 0.5
allows the machine to accurately cut various types of dimple key profiles.

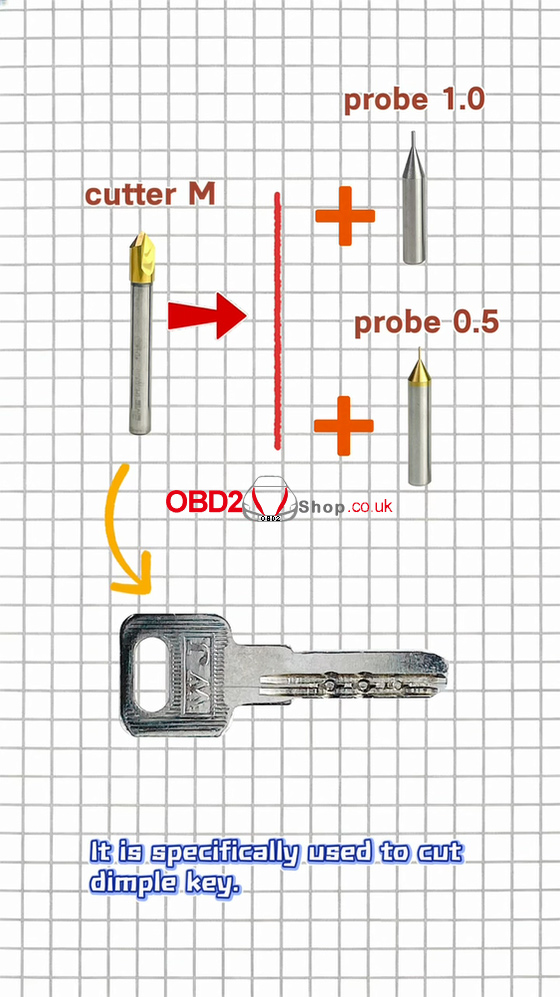

4. Cutter M
Cutter M is also used for dimple keys.
It can be paired with:
Probe 1.0
Probe 0.5
Depending on the specific key structure and cutting requirements.
5. Cutter 0.9 with Probe 0.5
Cutter 0.9 combined with Probe 0.5 is specifically designed for multi-track keys.
This cutter ensures precise cutting for complex multi-track key structures.

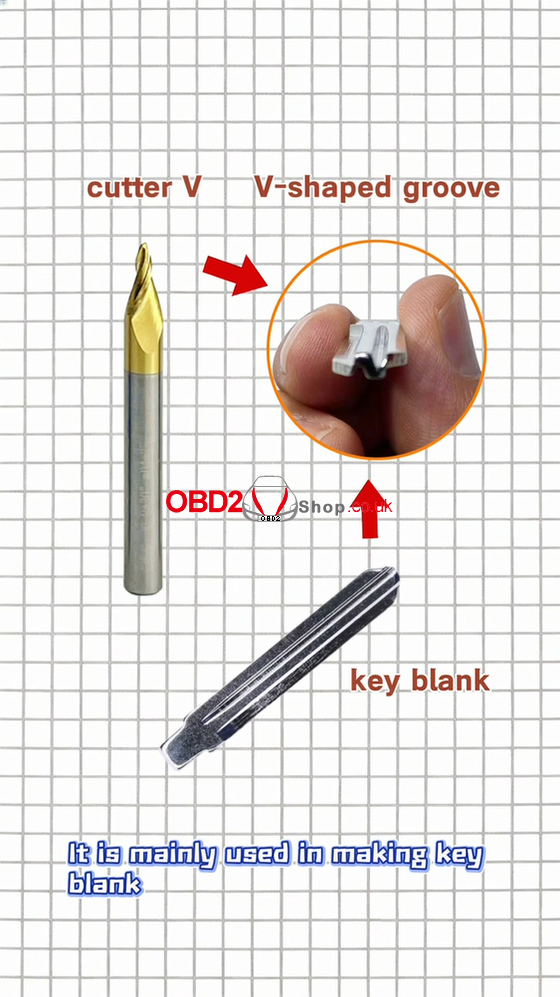

6. Cutter V
Cutter V is not commonly used but serves a specific purpose.
It is mainly used for making key blanks with V-shaped grooves before the final key cutting process.

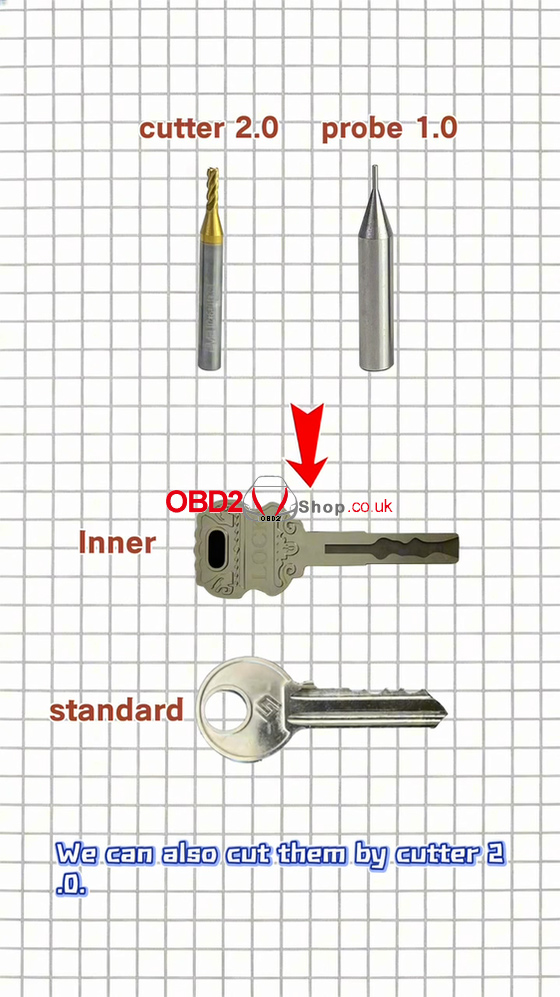

7. Cutting Inner Groove Keys
For certain inner groove keys and standard keys, Cutter 2.0 can also be used to complete the cutting process.

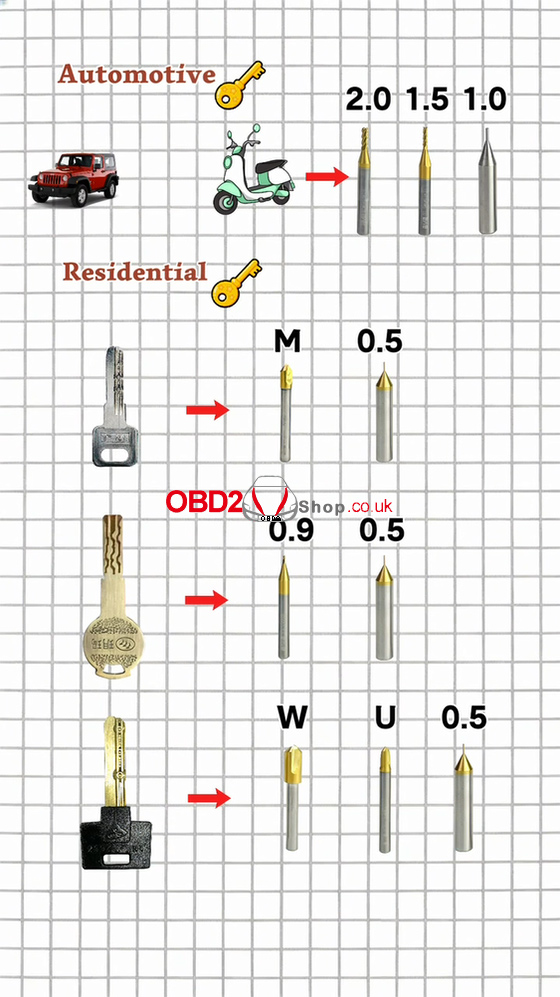

Summary
By understanding the functions of each cutter, locksmiths can quickly select the right tool for different key types and improve cutting efficiency.
The 2M2 Tank CNC key cutting machine supports multiple cutters designed for different applications, including:
Standard vehicle keys
Dimple keys
Multi-track keys
Inner groove keys
Special key blanks
Choosing the correct cutter and probe combination is essential for achieving precise and reliable results.
