Using the Keydiy KD-MAX with the BDC03 specific dismantling-free clip makes BMW G/U chassis key programming much more convenient and efficient. This guide walks you through the complete process of adding an FGB key to a BMW BDC3 module.

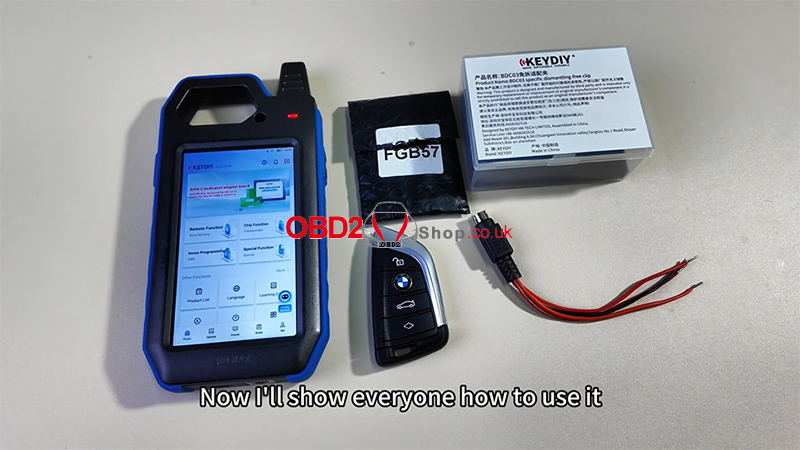

Required Tools:
Keydiy KD-MAX
BDC03 Specific Dismantling-Free Clip
Cable Series – Specific Cable for BDC03 Clip
KD FGB57 PCB Board
Original Key
Step 1: Prepare the BDC03 Clip
Remove the BDC03 dismantling-free clip from the package.

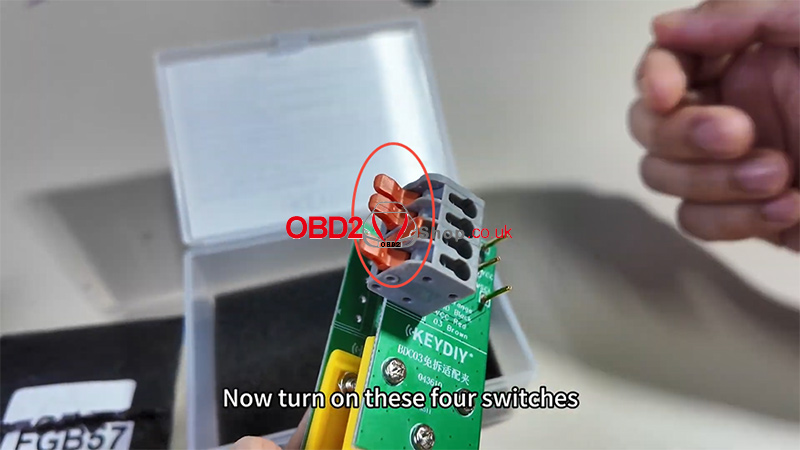

Turn on the four switches on the clip.

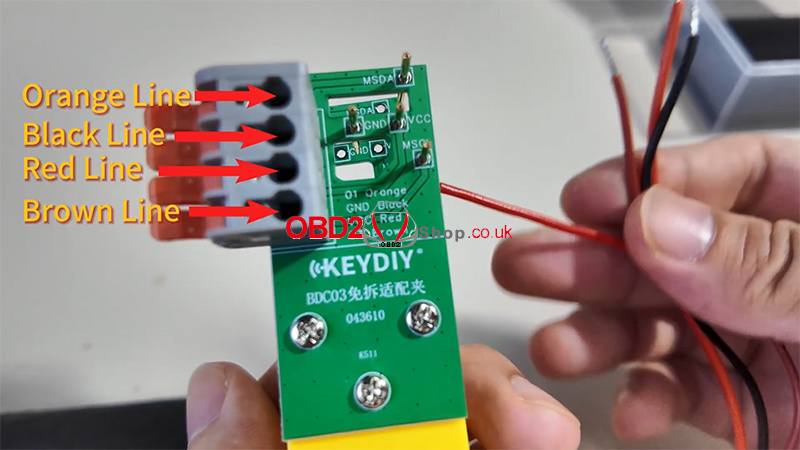

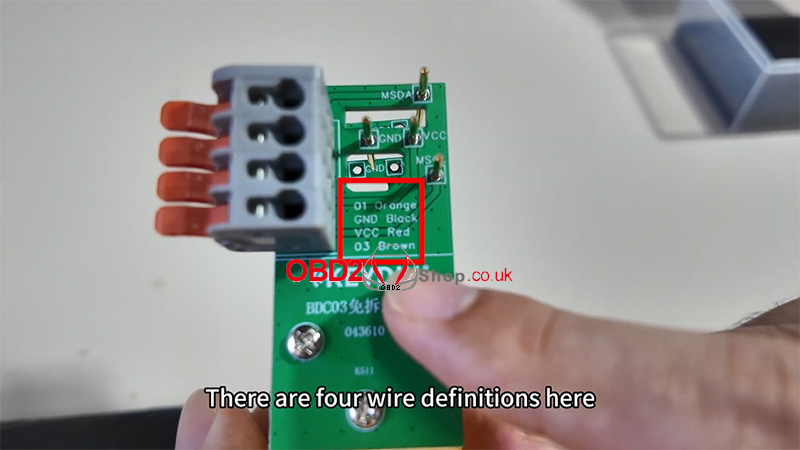

Note the four wire definitions and connect the wires in sequence.
Step 2: Connect to the Original Key

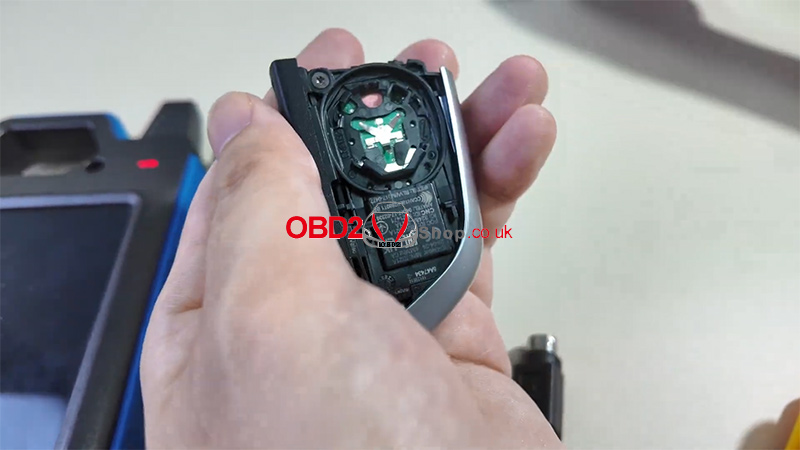

Remove the back cover of the original BMW key.

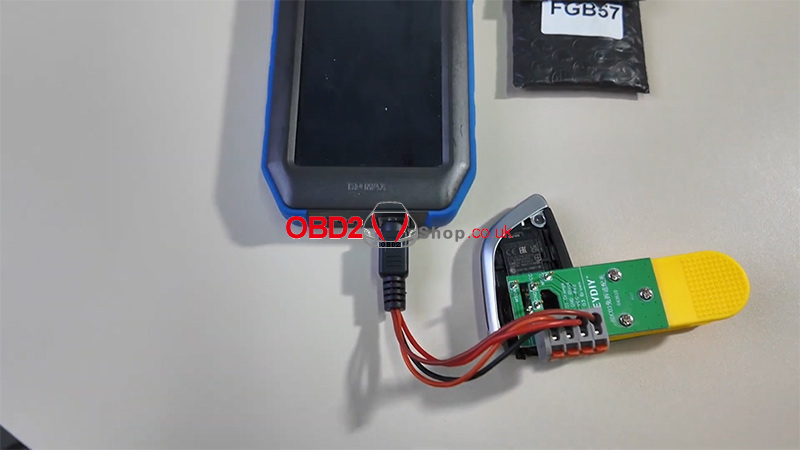

Attach the BDC03 dismantling-free clip to the back of the key.
Connect the Cable Series BDC03-specific cable to KD-MAX, then plug it into the KD-MAX device.
Step 3: Read the Chip Data with KD-MAX
On the KD-MAX, select [Remote Function].
Scroll down and choose [Smart Key Clone].

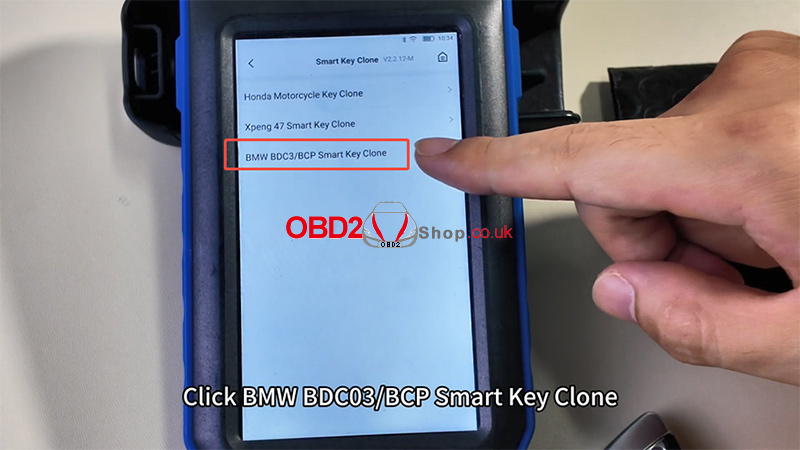

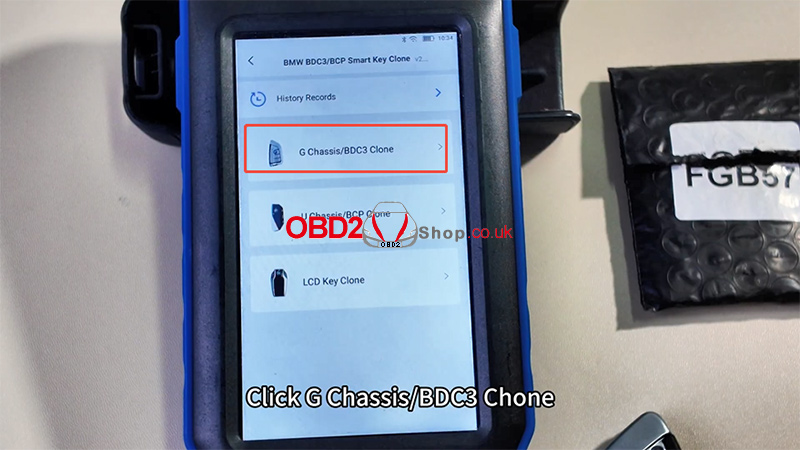

Select [BMW BDC03/BCP Smart Key Clone] → [G Chassis/BDC3 Clone].

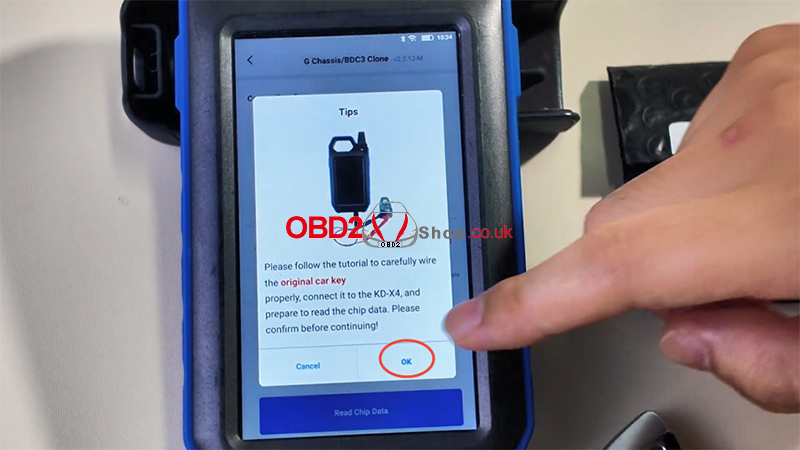

Tap [Read Chip Data], then confirm with OK.
Wait for the data to be read.

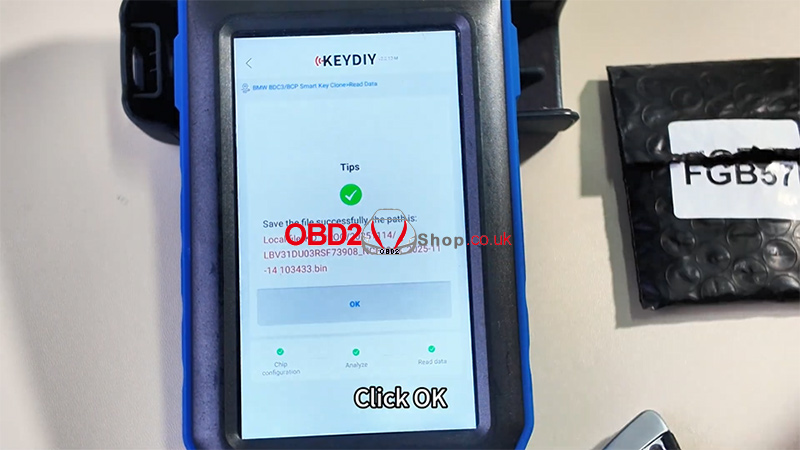

Once complete, save the file when prompted.
Step 4: Generate the New FGB Key
Place the FGB57 PCB in the KD-MAX induction area.
Select [KD-FGB Type] → [KD-FGB Remote].
Generate the key—once successful, you can install the PCB into the key shell and use it normally.
For a full demonstration, watch the video tutorial:
